8911DPSG42V02 | Definite Purpose Starter, 40A, NEMA 1, 110V 50Hz, 120V 60 Hz, 2-Poles, 1-Phase | Square D

Definite Purpose Starter, 40A, NEMA 1, 110V 50Hz, 120V 60 Hz, 2-Poles, 1-Phase

Definite Purpose Starter

• Line Rated Current: 40A
• Poles Description: 2-Pole
• Number of Phases: 1-Phase
• Degree of Protection: NEMA 1
• Control Circuit Voltage: 110V AC 50 Hz, 120V AC 60 Hz

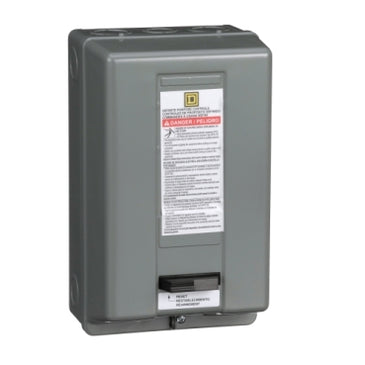

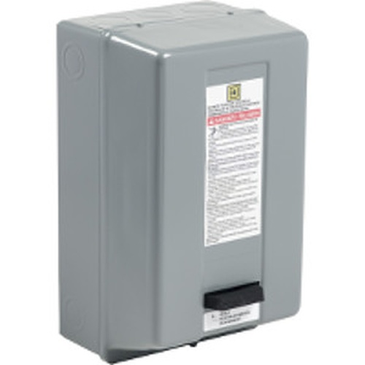

8911 definite purpose starters are inexpensive starters for applications with relatively low duty cycles. Typical applications include air compressors, agricultural equipment, pumps, and HVAC equipment. This two pole definite purpose starter has a full load rating of 40 amperes. This starter has ratings of 3 HP at 115 VAC and 7.5 HP at 230 VAC single phase. The nonreplaceable coil is available with a variety of coil voltages. This device has a 110/120 VAC 50/60 Hz coil. The starter has straight through wiring. The melting alloy type overload relay uses Type B thermal units to sense over current conditions. A painted sheet steel NEMA 1 general purpose enclosure is used to protect this definite purpose starter. Enclosure is 10.00 inches tall, 6.00 inches wide and 5.56 inches deep. Auxiliary contacts are available for these starters. 8911DPS definite purpose starters are UL component recognized.
