8911DPSG23V09 | 8911DPS definite purpose starter, 25 A, 3P, 208/240 V 60 Hz / 220 V 50 Hz coil, NEMA 1 | Square D by Schneider Electric

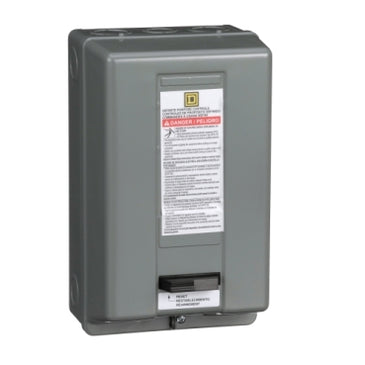

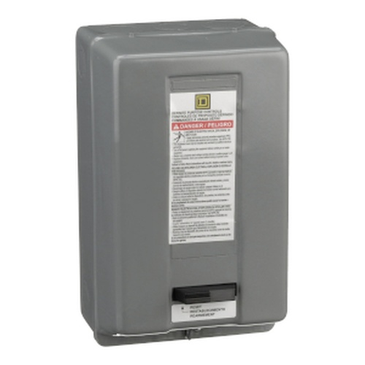

The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to 8911DPSG23V09
Overview
Details for 8911DPSG23V09
8911DPS definite purpose starter, 25 A, 3P, 208/240 V 60 Hz / 220 V 50 Hz coil, NEMA 1
8911 definite purpose starters are inexpensive starters for applications with relatively low duty cycles. Typical applications include air compressors, agricultural equipment, pumps, and HVAC equipment. This three pole definite purpose starter has a full load rating of 25 amperes. This starter has ratings of 2 HP at 115 VAC and 5 HP at 230 VAC single phase. It has a 10 HP at 230 VAC, 15 HP at 460 VAC and 20 HP at 575 VAC poly phase. The nonreplaceable coil is available with a variety of coil voltages. This device has a 208/240 VAC 60 Hz 220 VAC 50 Hz coil. The starter has straight through wiring. The melting alloy type overload relay uses Type B thermal units to sense over current conditions. A painted sheet steel NEMA 1 general purpose enclosure is used to protect this definite purpose starter. Enclosure is 10.00 inches tall, 6.00 inches wide and 5.56 inches deep. Auxiliary contacts are available for these starters. 8911DPS definite purpose starters are UL component recognized.Specifications
- Product
- Definite Purpose Starter
- Ampere Rating
- 25 A
- Horsepower Rating
- 2 hp 115 V AC;1 phase;5 hp 230 V AC;1 phase;10 hp 230 V AC;3 phase;15 hp 460 V AC;3 phase;20 hp 575 V AC;3 phase
- Maximum Voltage Rating
- 600 V AC
- Control Circuit Voltage
- 220 V AC 50 Hz;208...240 V AC 60 Hz
- Phase
- 3 phase
- Enclosure Material
- Painted sheet steel
- Enclosure Rating
- NEMA 1
- Locked Rotor Amperes
- 150 A 230 V AC;125 A 460 V AC;100 A 575 V AC
- Number of Poles
- 3P
- Range
- DPS
- Overload Type
- Melting alloy
- Number of Thermal Units
- 3
- Category
- 21381-8911 DP
- Discount Schedule
- CP1
- GTIN
- 785901024682
- Returnability
- Yes
- Country of origin
- CN
- Unit Type of Package 1
- PCE
- Number of Units in Package 1
- 1
- Package 1 Height
- 6.50 in (16.51 cm)
- Package 1 Width
- 6.80 in (17.272 cm)
- Package 1 Length
- 11.10 in (28.194 cm)
- Package 1 Weight
- 5.87 lb(US) (2.663 kg)
- Warranty
- 18 months
