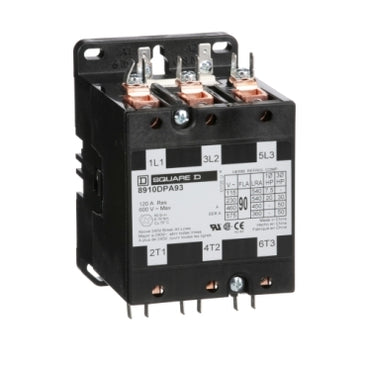

8910DPA93V09 | Definite Purpose Contactor Type DPA, 90A, 3-Poles, 220 VAC 50HZ, 208-240 VAC 60Hz | Square D by Schneider Electric

Definite Purpose Contactor Type DPA, 90A, 3-Poles, 220 VAC 50HZ, 208-240 VAC 60Hz

Definite Purpose Contactor:

• Range of Product: DPA
• Line Rated Current: 90A
• Motor Power Horsepower: 7.5HP 115VAC, 20HP 230VAC, 30HP 230VAC, 50HP 460VAC, 50HP 575V
• Number of Phases: 3-Phase
• Number of Poles: 3-Pole
• Control Circuit Voltage: 220 VAC 50HZ, 208-240 VAC 60Hz
• Enclosure Rating: Open
• Mounting: Panel
• System Voltage: 600VAC
• Locked Rotor Rated Current: 540A 277 VAC, 450A 460 VAC, 360A 575 VAC
• Electrical Connection: Quick Connect Terminals, Box Lugs

8910DP definite purpose magnetic contactors are designed for heating, air conditioning and refrigeration applications. This line of definite purpose contactors has current ratings up to 120 amperes resistive and 50 HP at 600 VAC. This three pole definite purpose contactor has a full load rating of 90 ampere and a resistive rating of 120 amperes. It also has a 7.5 HP at 115 VAC single phase, 20 HP at 230 VAC single phase and 30 HP at 230 VAC three phase, 50 HP at 460 VAC three phase and 50 HP at 575 VAC three phase. The nonreplaceable coil is available with a variety of coil voltages. This device has a 208/240 VAC 60 Hz, 220 VAC 50 Hz coil. The contactor has straight through wiring. Contactor is 5.20 inches by 3.39 inches and 4.76 tall. These contactors are UL component recognized and CSA certified.
