8538SCG13V02S | Type S Combination Starter with Disconnect Switch, Size 1, NEMA 1, 110V 50 Hz 120V 60Hz, 3-Poles, Non-Reversing | Square D by Schneider Electric

Brand: Square DSKU: 8538SCG13V02S

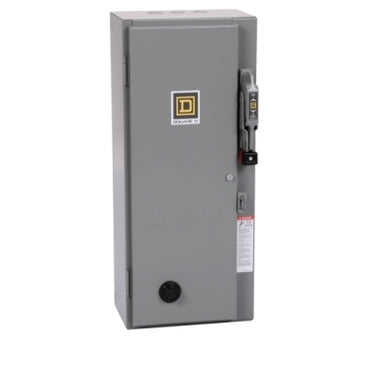

Square D | 8538SCG13V02S
The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to 8538SCG13V02S
Jump to: Overview & Specifications Reviews

Overview Details for 8538SCG13V02S

Type S Combination Starter with Disconnect Switch, Size 1, NEMA 1, 110V 50 Hz 120V 60Hz, 3-Poles, Non-Reversing

Type S Full Voltage Starter with Disconnect Switch
  • NEMA Size: Size 1
  • Degree of Protection: NEMA 1 General Purpose
  • Control Circuit Voltage: 110V AC 50 Hz 120V AC 60 Hz
  • Poles Description: 3-Poles
  • Number of Phases: 3-Phase
  • Control Circuit: Separate Control Circuit
  • Motor Starter Type: Non-Reversing

Specifications

Product
Combination Starter
Type
S
Control Circuit Type
Separate control circuit
Control Circuit Voltage
110 V AC 50 Hz;120 V AC 60 Hz
Starter Type
Non reversing
Number of Poles
3P
Horsepower Rating
7.5 hp 200 V AC;3 phase;7.5 hp 230 V AC;3 phase
Maximum Voltage Rating
600 V AC
Control Units
No control units
Pilot Light
No indicator
Auxiliary Contacts
Without
thermal overload type
Melting alloy 3
Disconnect Type
Fusible disconnect switch H;60 A
NEMA size
1
Enclosure Type
NEMA 1 painted sheet steel with external reset
Category
21213-8538;39 SC;SD(NOT S*R;T;W)
Discount Schedule
CP1
GTIN
785901743774
Returnability
No
Country of origin
MX
Unit Type of Package 1
PCE
Number of Units in Package 1
1
Package 1 Height
10.50 in (26.67 cm)
Package 1 Width
10.30 in (26.162 cm)
Package 1 Length
27.00 in (68.58 cm)
Package 1 Weight
32.57 lb(US) (14.774 kg)
Warranty
18 months
