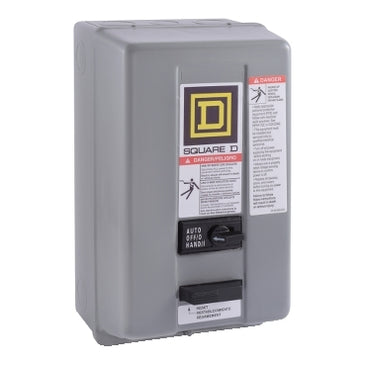

8536SBG1V02CS | Non-Reversing Starter Size 0, 2-Pole, Melting Alloy Overload, NEMA 1 +Options | Square D

Non-Reversing Starter Size 0, 2-Pole, Melting Alloy Overload, NEMA 1 +Options

Non-Reversing Starter

• Control Circuit Voltage : 110 V AC 50 Hz / 120 V AC 60 Hz
• Current Rating : 18 A
• Number of Poles : 2P
• Number of Phases : 1 phase
• Horsepower Rating : 1 HP 115 V AC / 2 HP 230 V AC
• Maximum Voltage Rating : 600 V AC

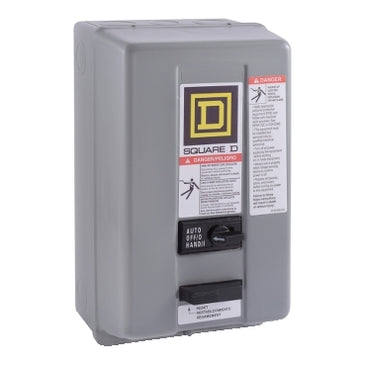

Type S NEMA motor starters are used for full voltage starting and stopping of AC squirrel cage motors. Type S motor starters have ratings up to 810 amperes. This 2 pole NEMA Size 0 non-reversing starter has an 18 ampere rating. This NEMA Size 0 motor starter has single phase ratings of 1 HP at 115 VAC and 2 HP at 230 VAC. This non-reversing NEMA motor starter has a melting alloy type overload relay that uses Type B thermal units to sense over current conditions. This NEMA starter has a 5 kA maximum SCCR (Short Circuit Current Rating) per UL508A when protected by an appropriate circuit breaker or fuse. Type S motor starters are available with replaceable coils in a wide variety of voltages. This starter has a 110/120 VAC 50/60 Hz operating coil wired for separate control. A painted sheet steel NEMA 1 general purpose enclosure is used to protect this starter. Enclosure is 10.00 inches tall, 6.00 inches wide and 5.56 inches deep. A wide variety of accessories are available for Type S starters. This starter is supplied with a HOA selector switch. Type S non-reversing NEMA motor starters are UL listed and CSA certified.
