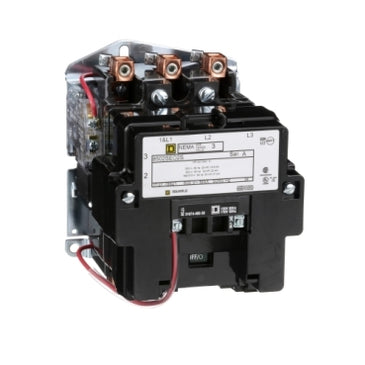

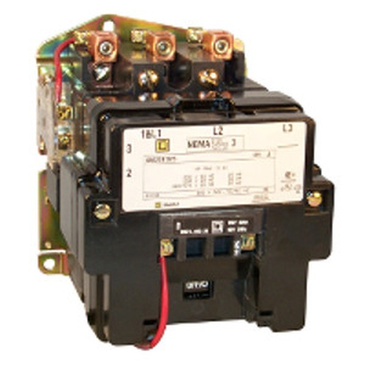

8502SEO2V03 | Class 8502 Type S Magnetic Contactor, Not Rated, 90A, 3-Poles, 220 VAC 50HZ, 240 VAC 60Hz, Non-Reversing | Square D by Schneider Electric

Brand: Square DSKU: 8502SEO2V03

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to 8502SEO2V03

Jump to: Overview & Specifications Reviews

Overview Details for 8502SEO2V03

Class 8502 Type S Magnetic Contactor, Not Rated, 90A, 3-Poles, 220 VAC 50HZ, 240 VAC 60Hz, Non-Reversing

Class 8502 Type S Full Voltage Magnetic Contactor:

Non-Reversing
NEMA Size: 3
NEMA Degree of Protection: Not Rated
Line Rated Current: 90A
Rated Power in Horsepower: 25 HP 200 VAC
Phase: 3-Phase
Number of Poles: 3-Pole
Control Circuit: Standard
Control Circuit Voltage: 220VAC 50HZ, 240 VAC 60Hz
Mounting: Surface
System Voltage: 600VAC
Electrical Connection: Screw Clamp Terminals

Type S non-reversing magnetic contactors are used to switch heating loads, capacitors, transformers, and electric motors where overload protection is provided separately. Type S contactors have ratings up to 810 amperes. This 3 pole NEMA Size 3 non-reversing contactor has a 90 ampere rating. Three phase NEMA Size 3 contactors have 25 HP at 200, 30 HP at 230 VAC and 50 HP at 460 and 575 VAC ratings. This NEMA contactor has a 100 kA maximum SCCR rating per UL508A when protected by an appropriate circuit breaker or fuse. These contactors are available with replaceable coils in a wide variety of voltages. This contactor has a 220/240 VAC 50/60 Hz coil that is wired for common control. This NEMA contactor is an open device without an enclosure. This contactor is 7.09 inches tall, 5.47 inches wide and 6.50 inches deep. A wide variety of accessories are available for Type S contactors. Type S NEMA contactors are UL listed and CSA certified.

Specifications

Product Type: Contactor
Product Range: 8502S
Contactor Type: Non-reversing
NEMA Size: 3
Rated Current: 90 A
Number of Poles: 3P
Maximum Voltage Rating: 600 V AC
Phase: 3 phase
Horsepower Rating: 25 HP 200 V AC;30 HP 230 V AC;50 HP 460 V AC;50 HP 575 V AC
SCCR: Circuit-breaker 150 A maximum;SCCR: 100 kA at 480 V AC;Fuse J 200 A maximum;SCCR: 100 kA at 600 V AC;Fuse T 200 A maximum;SCCR: 100 kA at 600 V AC;Fuse RK1 200 A maximum;SCCR: 100 kA at 600 V AC;Fuse RK5 200 A maximum;SCCR: 100 kA at 600 V AC
Coil Voltage: 240 V AC 60 Hz;220 V AC 50 Hz
Control Circuit Type: Common control circuit
Control Units: No control units
Pilot Light: No indicator
Auxiliary Contacts: Without
Other Equipment: Fuse not supplied
Terminal Type: Screw clamp terminals
Height: 7.09 in (180.09 mm)
Width: 5.47 in (138.94 mm)
Depth: 6.50 in (165.10 mm)
Enclosure Type: Not rated (open device)
Certifications: UL listed file E78351 CCN NLDX;CSA
Category: 21193-8502;36 SE;SF(NOT S*R;T;W)
Discount Schedule: CP1
GTIN: 785901788119
Returnability: No
Country of origin: MX
Unit Type of Package 1: PCE
Number of Units in Package 1: 1
Package 1 Height: 7.50 in (19.05 cm)
Package 1 Width: 9.10 in (23.114 cm)
Package 1 Length: 14.30 in (36.322 cm)
Package 1 Weight: 13.10 lb(US) (5.942 kg)
Unit Type of Package 2: PAL
Number of Units in Package 2: 60
Package 2 Height: 40.00 in (101.6 cm)
Package 2 Width: 40.00 in (101.6 cm)
Package 2 Length: 48.00 in (121.92 cm)
Package 2 Weight: 786.00 lb(US) (356.523 kg)
Warranty: 18 months
