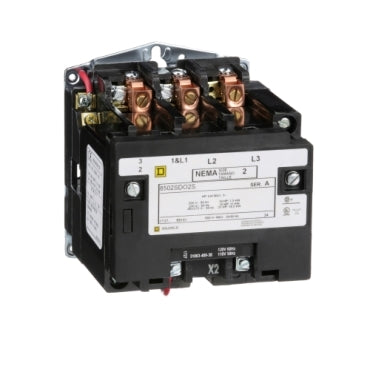

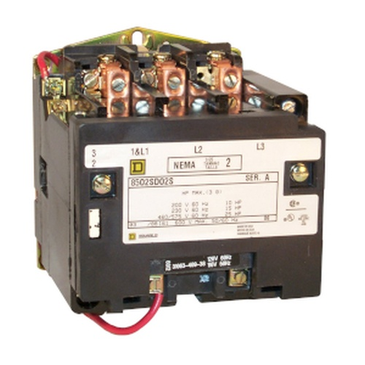

8502SDO2V08 | Non-Reversing Contactor, Size 2, 3-Pole, Open Style | Square D by Schneider Electric

Brand: Square DSKU: 8502SDO2V08

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to 8502SDO2V08

Jump to: Overview & Specifications Reviews

Overview Details for 8502SDO2V08

Non-Reversing Contactor, Size 2, 3-Pole, Open Style

Type S non-reversing magnetic contactors are used to switch heating loads, capacitors, transformers, and electric motors where overload protection is provided separately. Type S contactors have ratings up to 810 amperes. This 3 pole NEMA Size 2 non-reversing contactor has a 45 ampere rating. Three phase NEMA Size 2 contactors have 10 HP at 200, 15 HP at 230 VAC and 25 HP at 460 and 575 VAC ratings. This NEMA contactor has a 100 kA maximum SCCR rating per UL508A when protected by an appropriate circuit breaker or fuse. These contactors are available with replaceable coils in a wide variety of voltages. This contactor has a 208 VAC 60 Hz coil that is wired for common control. This NEMA contactor is an open device without an enclosure. This contactor is 5.13 inches tall, 4.31 inches wide and 4.94 inches deep. A wide variety of accessories are available for Type S contactors. Type S NEMA contactors are UL listed and CSA certified.

Specifications

Product Type: Contactor
Product Range: 8502S
Contactor Type: Non-reversing
NEMA Size: 2
Rated Current: 45 A
Number of Poles: 3P
Maximum Voltage Rating: 600 V AC
Phase: 3 phase
Horsepower Rating: 10 HP 200 V AC;15 HP 230 V AC;25 HP 460 V AC;25 HP 575 V AC
SCCR: Circuit-breaker 100 A maximum;SCCR: 100 kA at 480 V AC;Fuse J 100 A maximum;SCCR: 100 kA at 600 V AC;Fuse T 100 A maximum;SCCR: 100 kA at 600 V AC;Fuse RK1 100 A maximum;SCCR: 100 kA at 600 V AC;Fuse RK5 100 A maximum;SCCR: 100 kA at 600 V AC
Coil Voltage: 208 V AC 60 Hz
Control Circuit Type: Common control circuit
Control Units: No control units
Pilot Light: No indicator
Auxiliary Contacts: Without
Other Equipment: Fuse not supplied
Terminal Type: Screw clamp terminals
Height: 5.13 in (130.30 mm)
Width: 4.31 in (109.47 mm)
Depth: 4.94 in (125.48 mm)
Enclosure Type: Not rated (open device)
Certifications: UL listed file E78351 CCN NLDX;CSA
Category: 21192-8502;36 SC;SD(NOT S*R;T;W)
Discount Schedule: CP1
GTIN: 785901619932
Returnability: Yes
Country of origin: MX
Unit Type of Package 1: PCE
Number of Units in Package 1: 1
Package 1 Height: 6.70 in (17.018 cm)
Package 1 Width: 6.70 in (17.018 cm)
Package 1 Length: 9.40 in (23.876 cm)
Package 1 Weight: 5.67 lb(US) (2.572 kg)
Warranty: 18 months
