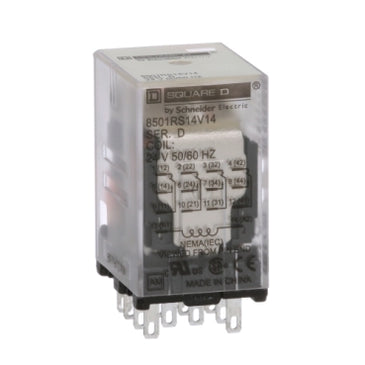

8501RS14V14 | RELAY 240VAC 5AMP TYPE R +OPTIONS | Square D by Schneider Electric

Brand: Square DSKU: 8501RS14V14

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to 8501RS14V14

Jump to: Overview & Specifications Reviews

Overview Details for 8501RS14V14

RELAY 240VAC 5AMP TYPE R +OPTIONS

8501RS miniature plug in relays are designed for control circuit logic applications. These relays are designed to be plugged into a relay socket. This makes for very easy replacement. This relay plugs into an 8501NR45 or 8501NR45B relay socket. Relay is available with 4PDT contact arrangements. It has four normally open and four normally closed contacts. The contacts have a 6 ampere resistive rating at 277 VAC, an 8 ampere resistive rating at 120 VAC and 30 VDC, a 1/3 HP rating at 120 VAC, a 1/2 HP rating at 277 VAC and a B300 inductive rating. Relays can be ordered with a wide variety of coil voltages. This relay has a 24 VAC nonreplaceable coil. Relay does not have a green LED indicator. 8501RS relays are UL listed with Square D relay sockets, UL component recognized and CSA certified.

Specifications

product range: 8501R
product type: Miniature Relay
Relay Type: Low voltage
mounting type: Socket
contact composition: 4PDT
[Uc] control circuit voltage: 24 V AC
pilot light: No indicator
manual operator: Without test button
horsepower rating: 0.33 120 V AC;0.5 277 V AC
breaking capacity: 3 A 120 V AC inductive control circuit UL 508;1.5 A 240 V AC inductive control circuit UL 508;8 A 120 V AC resistive control circuit UL 508;6 A 277 V AC resistive control circuit UL 508;8 A 30 V DC resistive control circuit UL 508
maximum switching voltage: 300 V AC;30 V DC
contact material: Silver alloy;gold flashed
operating time: 20 ms - pick-up;20 ms - drop-out
shape of pins: Spade
for use with: 8501NR45
Height: 1.10 in (27.9 mm)
Width: 0.83 in (21 mm)
Depth: 1.63 in (41.5 mm)
ambient temperature range - operational: -40…131 °F (-40…55 °C)
product certifications: UL Listed;UL Recognized;CSA;CE
Category: 21143-8501 R
Discount Schedule: CP2
GTIN: 785901559283
Returnability: Yes
Country of origin: CN
Unit Type of Package 1: PCE
Number of Units in Package 1: 1
Package 1 Height: 1.50 in (3.81 cm)
Package 1 Width: 2.00 in (5.08 cm)
Package 1 Length: 1.30 in (3.302 cm)
Package 1 Weight: 1.28 oz (36.287 g)
Warranty: 18 months
