8501KPR12P14V20 | 8501K General Purpose Plug-in Relay, 8 pin plug-in, 2 Poles, DPDT, 120V AC | Square D by Schneider Electric

Brand: Square DSKU: 8501KPR12P14V20

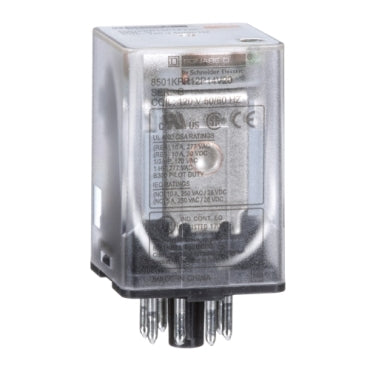

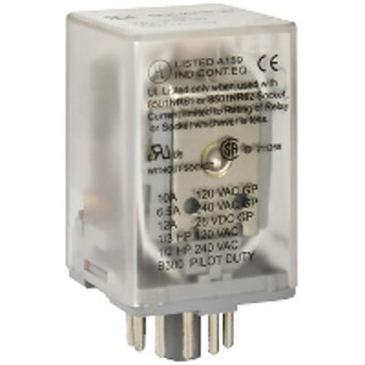

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to 8501KPR12P14V20

Jump to: Overview & Specifications Reviews

Overview Details for 8501KPR12P14V20

8501K General Purpose Plug-in Relay, 8 pin plug-in, 2 Poles, DPDT, 120V AC

8501K General Purpose Plug-in Relay

8 pin plug-in
Poles Description: 2 Poles
Switch Function: DPDT
Control Circuit Voltage: 120V AC
Local Signaling: Indicator light when relay energized
Rated Power in HP: 1 HP at 277V, 0.33 HP at 120V

8501KP universal plug in relays are designed for multipole switching applications at 300 VAC or lower. These relays are designed to be plugged into a relay socket. This makes for very easy replacement. This relay plugs into an 851NR51 or 8501NR52 relay socket. This relay has a DPDT contact arrangements. It has two normally open and two normally closed contacts. The contacts have a 10 ampere rating 277 VAC, a 10 ampere rating at 28 VDC, a 1/3 HP rating at 120 VAC, a 1 HP rating at 277 VAC and a B300 inductive rating. Relays can be ordered with a wide variety of coil voltages. This relay has a 120 VAC nonreplaceable coil. A green LED indicator is supplied on this relay. 8501KP relays are UL listed with Square D relay sockets, UL component recognized and CSA certified.

Specifications

product range: 8501K
product type: Relay
Relay Type: General purpose
mounting type: Socket
contact composition: DPDT
[Uc] control circuit voltage: 120 V AC
pilot light: Indicator light relay energised LED
manual operator: Without test button
horsepower rating: 1 hp 277 V AC;0.33 hp 120 V AC
breaking capacity: 3 A 120 V AC inductive control circuit UL 508;1.5 A 240 V AC inductive control circuit UL 508;10 A 277 V AC resistive control circuit UL 508;10 A 30 V DC resistive control circuit UL 508
maximum switching voltage: 300 V AC;30 V DC
contact material: Silver alloy (AgNi)
operating time: 20 ms - pick-up;20 ms - drop-out
shape of pins: Tubular
for use with: 8501NR52;8501NR51
ambient temperature range - operational: -40…131 °F (-40…55 °C)
product certifications: UL Listed;UL Recognized;CSA;CE
Height: 2.66 in (67.56 mm)
Width: 1.4 in (35.56 mm)
Depth: 1.4 in (35.56 mm)
Category: 21141-8501 KP
Discount Schedule: CP2
GTIN: 785901153726
Returnability: Yes
Country of origin: CN
Unit Type of Package 1: PCE
Number of Units in Package 1: 1
Package 1 Height: 1.70 in (4.318 cm)
Package 1 Width: 1.70 in (4.318 cm)
Package 1 Length: 3.00 in (7.62 cm)
Package 1 Weight: 3.20 oz (90.718 g)
Unit Type of Package 2: PAL
Number of Units in Package 2: 74
Package 2 Height: 40.00 in (101.6 cm)
Package 2 Width: 36.00 in (91.44 cm)
Package 2 Length: 48.00 in (121.92 cm)
Package 2 Weight: 15.55 lb(US) (7.055 kg)
