8501KFR12V14 | RELAY 240V 10A | Square D by Schneider Electric

Brand: Square DSKU: 8501KFR12V14

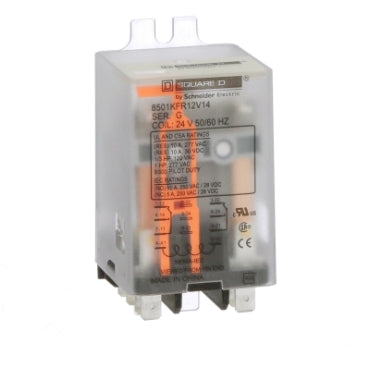

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to 8501KFR12V14

Jump to: Overview & Specifications Reviews

Overview Details for 8501KFR12V14

RELAY 240V 10A

8501KF universal relays are designed for multipole switching applications at 300 VAC or lower. These relays are designed to be flange mounted into a panel. This flange mounted relay has DPDT contact arrangements. It has two normally open and two normally closed contacts. The contacts have a 10 ampere rating 277 VAC, a 10 ampere rating at 28 VDC, a 1/3 HP rating at 120 VAC, a 1 HP rating at 277 VAC and a B300 inductive rating. Relays can be ordered with a wide variety of coil voltages. This relay has a 24 VAC nonreplaceable coil. A green LED indicator is supplied on this relay. 8501KF relays are UL component recognized and CSA certified.

Specifications

product range: 8501K
product type: Relay
Relay Type: General purpose
mounting type: Flange
contact composition: DPDT
[Uc] control circuit voltage: 24 V AC
pilot light: No indicator
manual operator: Without test button
horsepower rating: 1 hp 277 V AC;0.33 hp 120 V AC
breaking capacity: 3 A 120 V AC inductive control circuit UL 508;1.5 A 240 V AC inductive control circuit UL 508;10 A 277 V AC resistive control circuit UL 508;10 A 30 V DC resistive control circuit UL 508
maximum switching voltage: 300 V AC;30 V DC
contact material: Silver alloy (AgNi)
operating time: 20 ms - pick-up;20 ms - drop-out
shape of pins: Spade
ambient temperature range - operational: -40…131 °F (-40…55 °C)
product certifications: UL Recognized;CSA;CE
Height: 2.75 in (69.85 mm)
Width: 1.4 in (35.56 mm)
Depth: 1.4 in (35.56 mm)
Category: 21145-8501 KF;KL
Discount Schedule: CP2
GTIN: 785901317425
Returnability: Yes
Country of origin: CN
Unit Type of Package 1: PCE
Number of Units in Package 1: 1
Package 1 Height: 1.70 in (4.318 cm)
Package 1 Width: 1.70 in (4.318 cm)
Package 1 Length: 3.00 in (7.62 cm)
Package 1 Weight: 2.88 oz (81.647 g)
