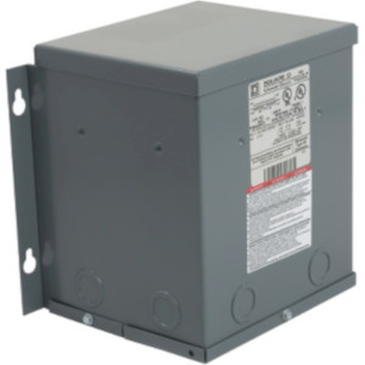

2S7F | TRANSFORMER DRY 1PH 2KVA 208V-120/240V | Square D by Schneider Electric

Square D | 2S7F
The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to 2S7F

Documents and manuals

Square D 2S7F Documents

Overview

Details for 2S7F

TRANSFORMER DRY 1PH 2KVA 208V-120/240V

Resin Encapsulated Transformers, these general purpose transformers accommodate voltage systems world wide. Resin-filled general purpose transformers are epoxy encapsulated. The enclosure has no openings, making resin-filled transformers ideal for use indoor or outdoor where airborne particles or contaminants could be detrimental to operation. The core-and-coil assembly is embedded in an epoxy resin compound and wall mounted for maximum protection. Type 3R enclosure are designed to allow energy efficient transformers to be installed in environments requiring more protection. This Dry Sealed Transformer that is 1 phase, and has a rated power of 2 KVA. This transformer has a primary voltage of 208 V, and a secondary voltage of 120/240 V. The enclosure for this transformer has a NEMA 3R rating, and is wall mounted, and made of painted sheet steel. Dimensions for this transformer are 9.56 in (H), 8.68 in (W), 6.56 in (D). This product complys to UL & CSA standards.

Specifications

Product or Component Type
Dry Sealed Transformer
Primary to Secondary Voltage
208 V 120/240 V
Full Capacity Taps
0
Enclosure Code
9A
Phase
1 phase
Power Rating
2 kVA
temperature rise
115 °C
Height
9.56 in (242.82 mm)
Width
8.68 in (220.47 mm)
Depth
6.56 in (166.62 mm)
enclosure mounting
Wall mounted
Enclosure Material
Painted sheet steel
Enclosure Type
NEMA 3R
insulation temperature
356 °F (180 °C)
Product Certifications
UL Listed;cULus;CSA
Category
16277-RESIN LVGP XFMR
Discount Schedule
PE2
GTIN
785901015277
Number of Units in Package 1
1
Package 1 Weight
49.50 lb(US) (22.453 kg)
Returnability
No
Country of origin
US
Unit Type of Package 1
PCE
Package 1 Height
9.70 in (24.638 cm)
Package 1 Width
11.10 in (28.194 cm)
Package 1 Length
12.50 in (31.75 cm)
Warranty
18 months
