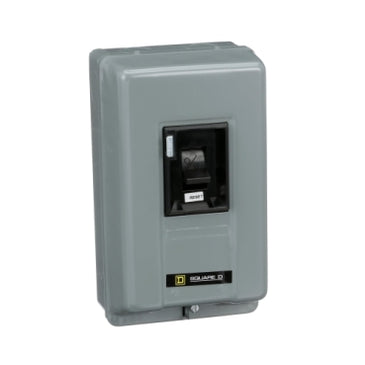

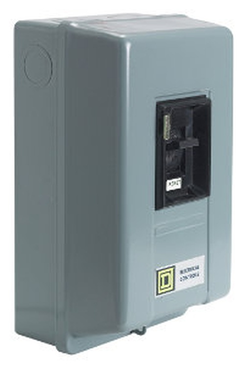

2510TBG2 | Integral Horsepower Manual Starter, NEMA 1, Toggle, 3-Pole, No Indicator, 600VAC | Square D by Schneider Electric

Integral Horsepower Manual Starter, NEMA 1, Toggle, 3-Pole, No Indicator, 600VAC

Integral Horsepower Manual Starter

• Motor Power HP: 3 HP at 200-230V AC; 5 HP at 380-575V AC
• Number of Phase: 3-Phase
• System Voltage: 600V AC
• Poles Description: 3-Pole
• Control Type: Toggle Switch
• Local Signaling: No Indicator
• Motor Starter Type: Non-Reversing
• Electrical Connection: Pressure Wire Clamp

Square D Type M & T integral horsepower manual motor starters provide overload protection and On-Off control for small AC motors. Starters can be locked in the Off/Stop position to prevent inadvertent operation. Pilot lights and auxiliary contacts are field addable. Overload heater elements are ordered separately to match motor data. Starters are UL Recognized, CSA Certified and CE Marked for global applications. Integral Horsepower Manual Motor Starters. Designed for single or poly phase motors up to 10 HP. Designed for DC motors up to 2 HP. Provides easy manual “On-Off” control of small motors. Available with pushbutton or toggle operators. Provides reliable melting alloy overload protection for motors. Intended for industrial and commercial applications. Pilot lights and auxiliary contacts are available. Enclosed or open versions to suit most application environment UL, CSA and CE approvals.
