2510MCG1 | Integral Horsepower Manual Starter, NEMA 1, 2-Pole, Push-button, No Indicator, 600VAC | Square D by Schneider Electric

Integral Horsepower Manual Starter, NEMA 1, 2-Pole, Push-button, No Indicator, 600VAC

Integral Horsepower Manual Starter

• Motor Power HP: 2 HP at 115V AC; 3 HP at 230V AC
• Number of Phase: 1-Phase
• System Voltage: 600V AC
• Poles Description: 2-Pole
• Control Type: Push-button
• Local Signaling: No Indicator
• Motor Starter Type: Non-Reversing
• Electrical Connection: Pressure Wire Clamp

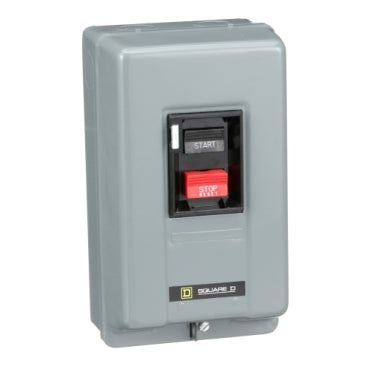

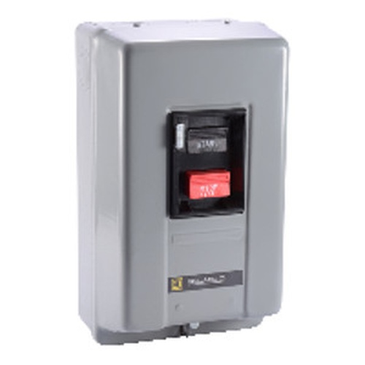

2510M manual motor starters are designed for manual On Off control for small motors. This two pole starter is rated for 2 HP at 115 VAC and 2 HP at 230 VAC single phase motors. This starter is NEMA M-1 rated. The proper thermal unit must be selected and ordered separately to provide proper overload protection for the motor. 2510M manual starters can be ordered in a variety of enclosure types. This device is in a surface mount NEMA 1 general purpose enclosure. Enclosure is painted sheet steel. Enclosure as a provision to allow padlocking of this device. 2510M manual starters are UL listed and CSA certified. A NEMA 1 general purpose surface mount enclosure is used to protect this integral horsepower manual starter. This is a painted sheet steel enclosure. Enclosure is 8.63 inches tall, 5.00 inches wide and 4.13 inches deep. 2510M integral horsepower starters are UL listed and CSA certified.
