2510KO2 | Single Unit Manual Switch, 30A, Open, Oversized, 3-Pole, Toggle Operated, No Indicator, 600VAC | Square D by Schneider Electric

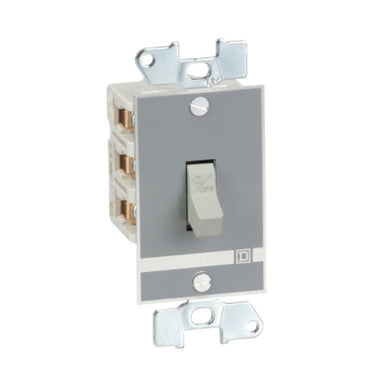

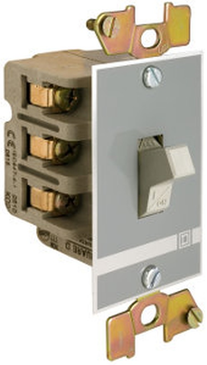

The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to 2510KO2
Overview
Details for 2510KO2
Single Unit Manual Switch, 30A, Open, Oversized, 3-Pole, Toggle Operated, No Indicator, 600VAC
Single Unit Manual Switch- Line Rated Current: 30A
- Motor Power HP: 2 HP at 115V AC; 1 HP at 90V DC; 2 HP at 115V DC; 1.5 HP at 230V DC; 7.5 HP at 230V DC, 10 HP at 460V AC, 575V AC
- System Voltage: 600V AC, 230V DC
- Poles Description: 3-Pole
- Control Type: Toggle Switch
- Number of Phases: 3-Phase
- Local Signaling: No Indicator
- Motor Starter Type: Non-Reversing
- Electrical Connection: Screw Clamp Terminals
Specifications
- Product
- Single Unit Manual Switch
- Type
- K
- Current Rating
- 30 A
- Horsepower Rating
- 2 hp 115 V AC;1 hp 90 V DC;2 hp 115 V DC;1.5 hp 230 V DC;7.5 hp 230 V AC;10 hp 460 V AC;10 hp 575 V AC
- Maximum Voltage Rating
- 600 V AC;230 V DC
- Number of Poles
- 3P
- Control Unit Type
- Toggle
- Number of Phases
- 3 phase
- Pilot Light
- No indicator
- Starter Type
- Non reversing
- Electrical Connection
- Screw clamp terminals
- Wire Gauge
- AWG 14...AWG 10 copper
- Height
- 4.13 in (104.90 mm)
- Width
- 1.69 in (42.93 mm)
- Depth
- 2.34 in (59.44 mm)
- Net Weight
- 0.35 lb(US) (0.16 kg)
- Certifications
- UL recognized E42243 CCN NLRV2;CSA LR25490 class 3211 05
- NEMA Enclosure Rating
- Not rated (open device)
- Category
- 21102-2510;2511;2512 K
- Discount Schedule
- CP1
- GTIN
- 785901554585
- Returnability
- Yes
- Country of origin
- MX
- Unit Type of Package 1
- PCE
- Number of Units in Package 1
- 1
- Package 1 Height
- 2.00 in (5.08 cm)
- Package 1 Width
- 4.70 in (11.938 cm)
- Package 1 Length
- 3.00 in (7.62 cm)
- Package 1 Weight
- 5.60 oz (158.757 g)
- Unit Type of Package 2
- PAL
- Number of Units in Package 2
- 864
- Package 2 Height
- 40.00 in (101.6 cm)
- Package 2 Width
- 40.00 in (101.6 cm)
- Package 2 Length
- 48.00 in (121.92 cm)
- Package 2 Weight
- 329.00 lb(US) (149.232 kg)
- Warranty
- 18 months
