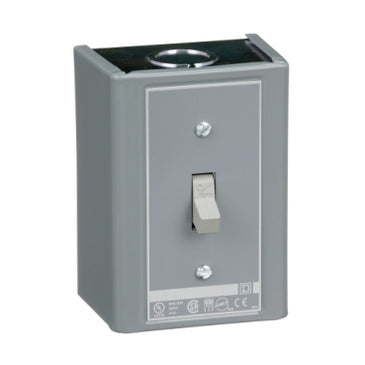

2510KGJ2 | Single Unit Manual Switch, 30A, NEMA 1, Oversized, 3-Pole, Toggle Operated, No Indicator, 600VAC | Square D by Schneider Electric

Single Unit Manual Switch, 30A, NEMA 1, Oversized, 3-Pole, Toggle Operated, No Indicator, 600VAC

Single Unit Manual Switch

• Line Rated Current: 30A
• Motor Power HP: 2 HP at 115V AC; 1 HP at 90V DC; 2 HP at 115V DC; 1.5 HP at 230V DC; 7.5 HP at 230V AC; 10 HP at 460V AC, 575V AC
• System Voltage: 600V AC, 230V DC
• Poles Description: 3-Pole
• Control Type: Toggle Switch
• Number of Phases: 3-Phase
• Local Signaling: No Indicator
• Motor Starter Type: Non-Reversing
• Electrical Connection: Screw Clamp Terminals

Square D Type K Motor starting switches provide compact manual On-Off control of single or three phase motor or resistance heating loads up to 600 VAC, where overload protection is not required or provided separately. Enclosure is sheet steel with wrap around thermoplastic cover for convenience of wiring. Oversized enclosure provides additional wiring space. Units are UL Listed, CSA Certified and CE Marked for global applications. Manual Switches. Designed for single or three phase AC motors. Suitable for use in three phase applications up to 20 HP. Provides easy manual “On-Off” control of small motors. For applications where overload protection is not required or is provided separately. Intended for industrial, commercial and residential applications. Can be easily installed. UL, CSA and CE approvals. This device is UL Listed and CSA certified.
