2510KG1A | Single Unit Manual Switch, 30A, NEMA 1, 2-Pole, Toggle Operated, Red Indicator, 600VAC | Square D by Schneider Electric

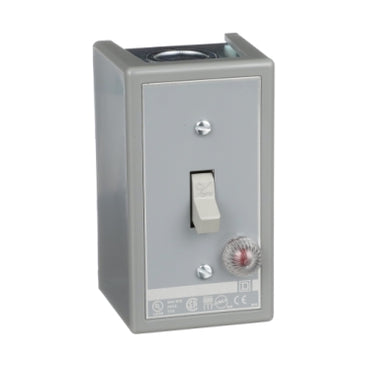

Square D | 2510KG1A
The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to 2510KG1A

Documents and manuals

Square D 2510KG1A Documents

Overview

Details for 2510KG1A

Single Unit Manual Switch, 30A, NEMA 1, 2-Pole, Toggle Operated, Red Indicator, 600VAC

Single Unit Manual Switch
  • Line Rated Current: 30A
  • Motor Power HP: 3HP at 460V AC; 2HP at 230V AC, 115V AC; 3HP at 575V AC; 1HP at 90V DC; 2HP at 115V DC; 1.5HP at 230V DC
  • System Voltage: 600V AC, 230V DC
  • Poles Description: 2-Pole
  • Control Type: Toggle Switch
  • Number of Phases: 1-Phase
  • Local Signaling: Red Indicator
  • Motor Starter Type: Non-Reversing
  • Electrical Connection: Screw Clamp Terminals
Square D Type K Motor starting switches provide compact manual On-Off control of single or three phase motor or resistance heating loads up to 600 VAC, where overload protection is not required or provided separately. Enclosure is sheet steel with wrap around thermoplastic cover for convenience of wiring. Units are UL Listed, CSA Certified and CE Marked for global applications. Manual Switches. Designed for single or three phase AC motors. Suitable for use in three phase applications up to 20 HP. Provides easy manual “On-Off” control of small motors. For applications where overload protection is not required or is provided separately. Intended for industrial, commercial and residential applications. Can be easily installed. UL, CSA and CE approvals. The enclosure is 4.25 inches tall, 2.44 inches wide and 2.75 inches deep. This device is UL Listed and CSA certified.

Specifications

Product
Single Unit Manual Switch
Type
K
Current Rating
30 A
Cable Entry
0.5" and 0.75" knock-outs (top and bottom)
Horsepower Rating
2 hp 115 V AC;2 hp 230 V AC;3 hp 460 V AC;3 hp 575 V AC;1 hp 90 V DC;2 hp 115 V DC;1.5 hp 230 V DC
Maximum Voltage Rating
600 V AC;230 V DC
Number of Poles
2P
Control Unit Type
Toggle
Number of Phases
1 phase
Pilot Light
Red indicator;115 V
Starter Type
Non reversing
Electrical Connection
Screw clamp terminals
Wire Gauge
AWG 14...AWG 10 copper
Height
4.25 in (107.95 mm)
Width
2.44 in (61.98 mm)
Depth
2.75 in (69.85 mm)
Certifications
UL listed file E42243 CCN NLRV;CSA LR25490 class 3211 05
NEMA Enclosure Rating
NEMA 1 Plastic standard size
Category
21102-2510;2511;2512 K
Discount Schedule
CP1
GTIN
785901554486
Returnability
Yes
Country of origin
MX
Unit Type of Package 1
PCE
Number of Units in Package 1
1
Package 1 Height
2.52 in (6.4 cm)
Package 1 Width
3.11 in (7.9 cm)
Package 1 Length
4.88 in (12.4 cm)
Package 1 Weight
13.60 oz (385.6 g)
Warranty
18 months
