2510FW2 | Fractional Horsepower Manual Starter, 16A, NEMA 4, 1 Conduit Opening, 2-Pole, Toggle Operated with Lock, No Indicator, 277VAC | Square D by Schneider Electric

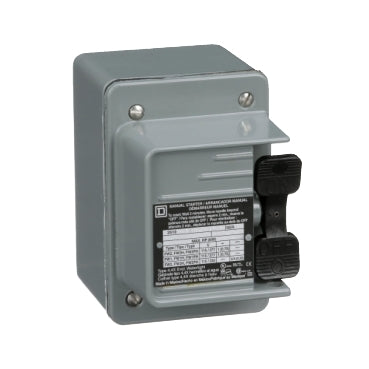

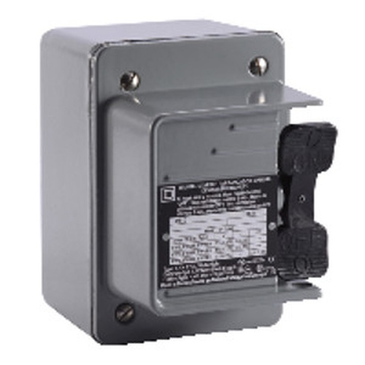

The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to 2510FW2
Overview
Details for 2510FW2
Fractional Horsepower Manual Starter, 16A, NEMA 4, 1 Conduit Opening, 2-Pole, Toggle Operated with Lock, No Indicator, 277VAC
Fractional Horsepower Manual Starter- Line Rated Current: 16A
- Motor Power HP: 1 HP at 115 VAC, 277 VAC; 0.75 HP 115V DC, 230v DC; 2 HP at 230V AC
- System Voltage: 277V AC, 230V DC
- Poles Description: 2-Pole
- Control Type: Toggle Switch with Lock-Off
- Number of Phases: 1-Phase
- Local Signaling: No Indicator
- Reset: Manual
- Motor Starter Type: Non-Reversing
- Electrical Connection: Screw Clamp Terminals
Specifications
- Product
- Single Unit Manual Starter
- Type
- F
- Overload Relay Type
- Melting alloy
- Current Rating
- 16 A
- cable entry
- 0.75 NPT (bottom)
- Horsepower Rating
- 1 hp 115 V AC;1 hp 277 V AC;0.75 hp 115 V DC;0.75 hp 230 V DC;2 hp 230 V AC
- Voltage Rating
- 277 V AC;230 V DC
- Number of Poles
- 2P
- Control Unit
- Toggle switch (with lock-off)
- Number of Phases
- 1 phase
- Pilot Light
- No indicator
- Reset
- Manual
- motor starter type
- Non reversing
- Electrical Connection
- Screw clamp terminals
- Wire Gauge
- AWG 14...AWG 12 copper
- Height
- 4.38 in (111.25 mm)
- Width
- 3 in (76.20 mm)
- Depth
- 4.25 in (107.95 mm)
- Product Certifications
- UL listed file E42243 CCN NLRV;CSA LR25490 class 3211 05
- NEMA Enclosure Rating
- NEMA 4 die cast zinc alloy standard size
- Category
- 21101-2510;2511;2512 F
- Discount Schedule
- CP1
- GTIN
- 785901554356
- Returnability
- No
- Country of origin
- MX
- Unit Type of Package 1
- PCE
- Number of Units in Package 1
- 1
- Package 1 Height
- 3.60 in (9.144 cm)
- Package 1 Width
- 4.60 in (11.684 cm)
- Package 1 Length
- 5.40 in (13.716 cm)
- Package 1 Weight
- 2.94 lb(US) (1.334 kg)
- Warranty
- 18 months
