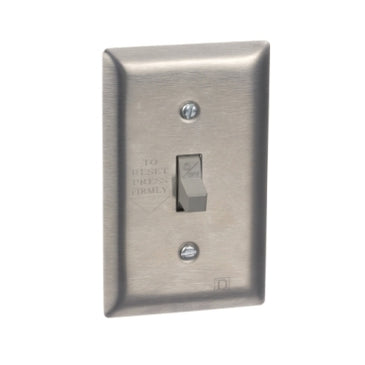

2510FS2 | Fractional Horsepower Manual Starter, 16A, SS Flush Mount, 2-Pole, Toggle Operated, No Indicator, 277VAC | Square D by Schneider Electric

Fractional Horsepower Manual Starter, 16A, SS Flush Mount, 2-Pole, Toggle Operated, No Indicator, 277VAC

Fractional Horsepower Manual Starter

• Line Rated Current: 16A
• Motor Power HP: 1 HP at 115 VAC, 277 VAC; 0.75 HP at 115V DC, 230V DC; 2 HP at 230V AC
• System Voltage: 277V AC, 230V DC
• Poles Description: 2-Pole
• Control Type: Toggle Switch
• Number of Phases: 1-Phase
• Local Signaling: No Indicator
• Reset: Manual
• Motor Starter Type: Non-Reversing
• Electrical Connection: Screw Clamp Terminals

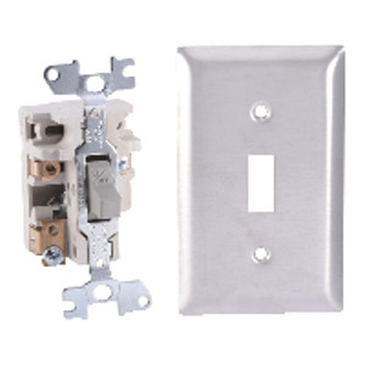

Square D Type F Manual starters provide overload protection and manual On-Off control for small single phase AC or DC motors. Flush mounted units can be mounted in a standard switch box or in a machine cavity without a box. Overload heater element is ordered separately to match motor data. Units are UL Listed, CSA Certified and CE Marked for global applications. Fractional Motor Starters. Designed for fractional single phase motors up to 1 HP. Provides easy manual “On-Off” control of small motors. Provide melting alloy overload protection for motors. Intended for industrial and commercial applications. Enclosed or open versions to suit most application environments. Can be easily installed. UL, CSA and CE approvals.
