2510FO2P | Fractional Horsepower Manual Starter, 16A, Open, 2-Pole, Toggle Operated, Red Indicator, 277VAC | Square D by Schneider Electric

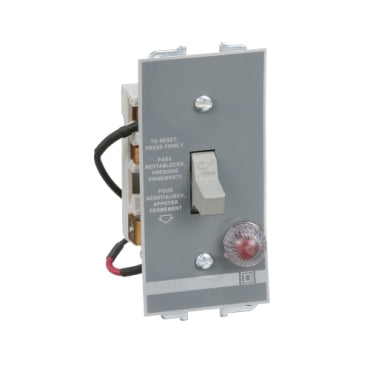

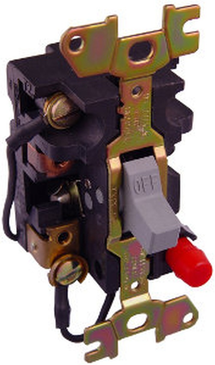

The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to 2510FO2P
Overview
Details for 2510FO2P
Fractional Horsepower Manual Starter, 16A, Open, 2-Pole, Toggle Operated, Red Indicator, 277VAC
Fractional Horsepower Manual Starter- Line Rated Current: 16A
- Motor Power HP: 1 HP at 115 VAC, 277 VAC, 0.75 HP at 115V DC, 230V DC; 2HP at 230V AC
- System Voltage: 277V AC
- Poles Description: 2-Pole
- Control Type: Toggle Switch
- Number of Phases: 1-Phase
- Local Signaling: Red Indicator
- Reset: Manual
- Motor Starter Type: Non-Reversing
- Electrical Connection: Screw Clamp Terminals
Specifications
- Product
- Single Unit Manual Starter
- Type
- F
- Overload Relay Type
- Melting alloy
- Current Rating
- 16 A
- cable entry
- Without
- Horsepower Rating
- 1 hp 115 V AC;1 hp 277 V AC;0.75 hp 115 V DC;0.75 hp 230 V DC;2 hp 230 V AC
- Voltage Rating
- 277 V AC;230 V DC
- Number of Poles
- 2P
- Control Unit
- Toggle switch
- Number of Phases
- 1 phase
- Pilot Light
- Red indicator
- Reset
- Manual
- motor starter type
- Non reversing
- Electrical Connection
- Screw clamp terminals
- Wire Gauge
- AWG 14...AWG 12 copper
- Height
- 4.13 in (104.90 mm)
- Width
- 1.69 in (42.93 mm)
- Depth
- 2.22 in (56.39 mm)
- Product Certifications
- UL recognized E42243 CCN NLRV2;CSA LR25490 class 3211 05
- NEMA Enclosure Rating
- Not rated (open device)
- Category
- 21101-2510;2511;2512 F
- Discount Schedule
- CP1
- GTIN
- 785901554165
- Returnability
- Yes
- Country of origin
- MX
- Unit Type of Package 1
- PCE
- Number of Units in Package 1
- 1
- Package 1 Height
- 2.52 in (6.4 cm)
- Package 1 Width
- 3.11 in (7.9 cm)
- Package 1 Length
- 4.80 in (12.2 cm)
- Package 1 Weight
- 6.08 oz (172.4 g)
- Warranty
- 18 months
