2510FG2P | Fractional Horsepower Manual Starter, 16A, NEMA 1, 2-Pole, Toggle Operated, Red Indicator, 277VAC | Square D by Schneider Electric

Brand: Square DSKU: 2510FG2P

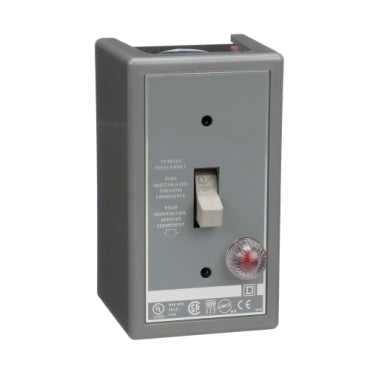

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to 2510FG2P

Jump to: Overview & Specifications Reviews

Overview Details for 2510FG2P

Fractional Horsepower Manual Starter, 16A, NEMA 1, 2-Pole, Toggle Operated, Red Indicator, 277VAC

Fractional Horsepower Manual Starter

Line Rated Current: 16A
Motor Power HP: 1 HP at 115 VAC, 277 VAC; 0.75 HP at 115V DC, 230V DC; 2HP at 230V AC
System Voltage: 277V AC, 230V DC
Poles Description: 2-Pole
Control Type: Toggle Switch
Number of Phases: 1-Phase
Local Signaling: Red Indicator
Reset: Manual
Motor Starter Type: Non-Reversing
Electrical Connection: Screw Clamp Terminals

Square D Type F fractional motor manual starter provide overload protection and manual On-Off control for small single phase AC motors. Enclosure is sheet steel with wrap around thermoplastic cover for convenience of wiring. Overload heater element is ordered separately to match motor data. Units are UL Listed, CSA Certified and CE Marked for global applications. Fractional Motor Starters. Designed for fractional single phase motors up to 1 HP. Provides easy manual “On-Off” control of small motors. Provide melting alloy overload protection for motors. Intended for industrial and commercial applications. Enclosed or open versions to suit most application environments. Can be easily installed. UL, CSA and CE approvals.

Specifications

Product: Single Unit Manual Starter
Type: F
Overload Relay Type: Melting alloy
Current Rating: 16 A
cable entry: 0.5" and 0.75" knock-outs (top and bottom)
Horsepower Rating: 1 hp 115 V AC;1 hp 277 V AC;0.75 hp 115 V DC;0.75 hp 230 V DC;2 hp 230 V AC
Voltage Rating: 277 V AC;230 V DC
Number of Poles: 2P
Control Unit: Toggle switch
Number of Phases: 1 phase
Pilot Light: Red indicator
Reset: Manual
motor starter type: Non reversing
Electrical Connection: Screw clamp terminals
Wire Gauge: AWG 14...AWG 12 copper
Height: 4.25 in (107.95 mm)
Width: 2.44 in (61.98 mm)
Depth: 2.75 in (69.85 mm)
Product Certifications: UL listed file E42243 CCN NLRV;CSA LR25490 class 3211 05
NEMA Enclosure Rating: NEMA 1 Plastic standard size
Category: 21101-2510;2511;2512 F
Discount Schedule: CP1
GTIN: 785901553960
Returnability: Yes
Country of origin: MX
Unit Type of Package 1: PCE
Number of Units in Package 1: 1
Package 1 Height: 2.60 in (6.604 cm)
Package 1 Width: 3.00 in (7.62 cm)
Package 1 Length: 4.70 in (11.938 cm)
Package 1 Weight: 13.12 oz (371.946 g)
Unit Type of Package 2: CAR
Number of Units in Package 2: 60
Package 2 Height: 13.40 in (34.036 cm)
Package 2 Width: 12.80 in (32.512 cm)
Package 2 Length: 14.90 in (37.846 cm)
Package 2 Weight: 49.55 lb(US) (22.475 kg)
Warranty: 18 months
