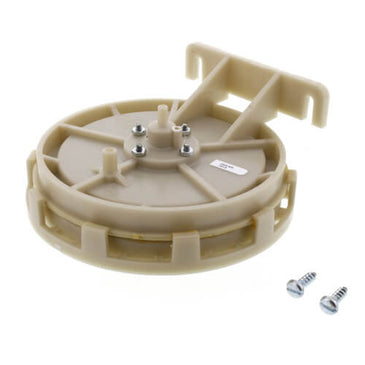

2323-505 | Differential or Static Pressure Transmitter: Range W.C. (Pa) -0.05 to +0.20 in. (-12.45 to 49.8) | Barber-Colman by Schneider Electric

Brand: Barber-ColmanSKU: 2323-505

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to 2323-505

Jump to: Overview & Specifications Reviews

Overview Details for 2323-505

Differential or Static Pressure Transmitter: Range W.C. (Pa) -0.05 to +0.20 in. (-12.45 to 49.8)

Differential or Static Pressure Transmitter is designed to sense differential or static pressure across fans, coils, filters, or between two reference points and to transmit a 3 to 15 psig signal to controlling and indicating devices such as receiver controllers, receiver gages, and sensitive pressure switches.
These devices are one-pipe transmitters which require an external restrictor in the supply line. Their design features pneumatic feedback, which ensures accuracy and stability over the entire operating range. Mounting ears are provided for strain-free mounting on ducts or other flat surfaces.

Permits remote readout and control of differential or static pressure of air.
Ball-in-seat pneumatic feedback ensures linearity and responsiveness.
Field-adjustable “zero”.
Range W.C. (Pa) -0.05 to +0.20 in. (-12.45 to 49.8)
