Direct Acting, Three-Pipe, Day/Night Thermostat, w/o Dial Limit Stops, w/Remote

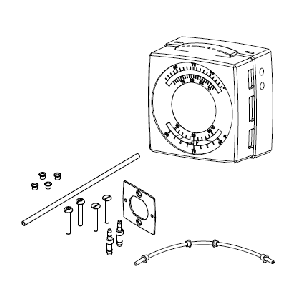

Direct Acting, Three-Pipe, Day/Night Thermostat, w/o Dial Limit Stops, w/Remote and manual reset lever. These pneumatic room thermostats are designed for proportional temperature control of pneumatic valves and damper actuators to maintain room air temperatures in heating, ventilating, and air conditioning systems. Day 55-85°F Set point range, Night 50-80°F Setpoint Range.

Application

The 2216 Series Pneumatic Room Thermostats are designed for applications requiring separate control points due to varying occupancy or seasonal loads. They are direct acting and are particularly well suited to day/night control in buildings such as schools, hospitals, and shopping malls. These thermostats have a serrated thumb wheel for setpoint adjustment.

Specifications

Action: Direct, proportional.
Setpoint Range:
Day, 55 to 85 °F (13 to 29 °C)
Night, 50 to 80 °F (10 to 27 °C).
Throttling Range:
Day, Adjustable 2 to 12 °F (1.1 to 6.7 °C).
Night, Adjustable 3 to 5 °F (1.7 to 2.8 °C).
Supply Air Pressure:
Below 17 psig (117 kPa), Operates at day setpoint.
Above 21 psig (144.5 kPa), Operates at night setpoint.
Maximum Air Pressure: 30 psig (207 kPa).
Main Air Consumption: 30 scim (8.2 mL/s) at 16 psig
(110 kPa); 43 scim (11.7 mL/s) at 25 psig (172 kPa).
Calibration Point: 9 psig (62 kPa) branch line pressure when
ambient equals setpoint (factory-set).
Day/Night Indexing: Remote, by changes in main air pressure, or
local, with switching lever.
Setpoint Adjustment: Serrated thumbwheel.
Construction:
Mechanical Components, Die cast aluminum, stainless steel,
and glass-filled nylon.
Diaphragm, Fabric-reinforced Neoprene.
Air Lines, Connect to thermostat nipples with spring-reinforced
plastic tubes.
Branch Connections, Equipped with internal filters.
Environment: Humidity, 5 to 95% relative humidity,
non-condensing.
