SCE-84XM4024G | NEMA 3R, 12 | 1DR XM Enclosure, 84H x 40W x 24D | Saginaw

Brand: SaginawSKU: SCE-84XM4024G

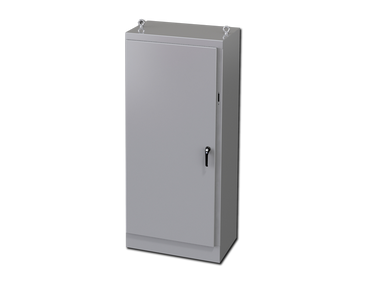

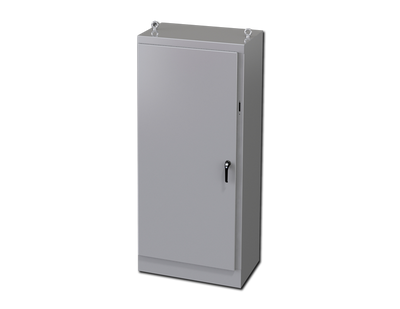

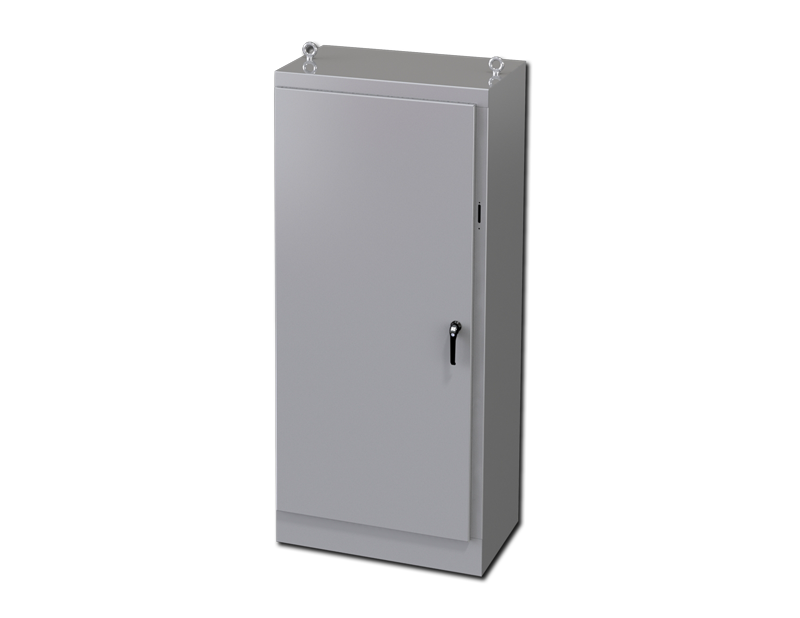

Saginaw | SCE-84XM4024G
The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to SCE-84XM4024G
Overview & Specifications ReviewsParts & Accessories

Overview Details for SCE-84XM4024G

Construction

  • 0.104 In. carbon steel.
  • Seams continuously welded and ground smooth.
  • Flange trough collar around all sides of door opening.
  • Body stiffeners in large enclosures for extra rigidity.
  • Heavy duty lifting eyes anchor into reinforced top.
  • Removable centerposts permit easy panel installation.
  • Concealed hinges.
  • Black zinc die cast coinproof/padlocking handle.
  • 3-point latching mechanism.
  • Ends of latch rods have ramp shoes for easier door closing.
  • Panel supports.
  • Large removable print pockets.
  • Pour in place oil and water resistant gasket
  • Removable panels mount on collar studs.
  • Defeater on master door requires a screwdriver to open.
  • Ground stud on door and body.
  • Provisions for light kit.
  • Holes plugs provided to seal holes in bottom of enclosure.

Application

Designed to house electrical equipment and provide protection from dirt, dust, oil and water and to house most standard type disconnects. For outdoor application a drip shield and drain vent is recommended.

For Details about the design, performance expectations, applications and design suggestions - See Design Considerations www.saginawcontrol.com/instman/considerations.pdf

Finish

ANSI-61 gray powder coating inside and out. Sub-panels are powder coated white.
Part numbers ending in "G" have galvanized subpanels installed.

Industry Standards - (IS3)

  • NEMA Type 3R, 12 and Type 13
  • UL Listed Type 3R and 12
  • CSA Type 3R and 12
  • IEC 60529
  • IP 55

Notes

Disconnect switch (or circuit breaker) and operating mechanism are not furnished with enclosure.

*Part numbers ending in "G" have galvanized sub-panels installed.

Special Instructions apply for IS3, IS4 and IS6 to maintain the environmental rating of Type 3R for these parts. Instructions are located on the enclosure door. Drip shield is required on IS3, drip shield is recommended on IS4 and IS6. Drain holes are required on all.

Specifications

Item Number SCE-84XM4024G
Brand Saginaw
1 Enclosure Rating NEMA 12
1 Enclosure Rating NEMA 3R
Enclosure Depth (IN) 24
Enclosure Height (IN) 84
Enclosure Type 1DR XM Enclosure
Enclosure Width (IN) 40
