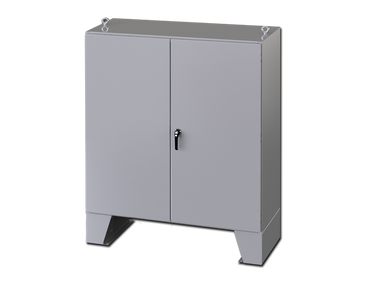

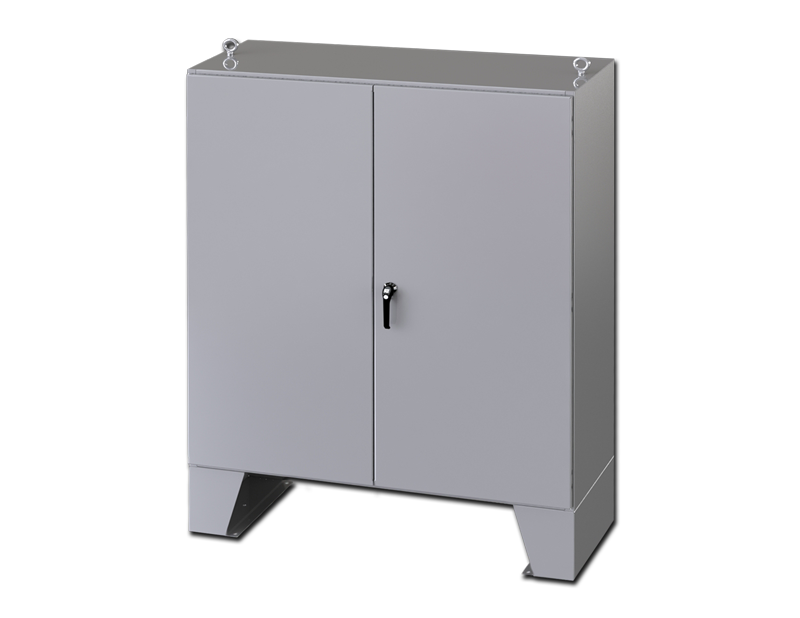

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to SCE-604810LP

Overview & Specifications Reviews Parts & Accessories

Overview Details for SCE-604810LP

Construction

0.104 In. carbon steel.
Flange trough collar around all sides of door opening.
Seams continuously welded and ground smooth.
Strong, rigid construction with body stiffeners.
Gasketed overlapping doors eliminate need for center post.
Black zinc die cast keylocking/padlocking handle.
3-point latching mechanism.
Latch rods have ramp shoes for easier door closing.
Concealed hinges.
Removable print pocket provided on door with 3-point latch.
12 inch removable floor stands.
Heavy duty lifting eyes.
Panel supports.
Pour in place oil and water resistant gasket
Collar studs 3/8-16 provided for mounting optional panels.
Ground stud on door and body.
Hole plugs provided to seal holes in bottom of enclosure.

Application

Designed to house electrical and electronic controls, instruments and compartments. Provides protection from dust, oil and water. For outdoor application a drip shield and drain vent is recommended.

For Details about the design, performance expectations, applications and design suggestions - See Design Considerations www.saginawcontrol.com/instman/considerations.pdf

Finish

ANSI-61 gray powder coating inside and out. Optional sub-panels are powder coated white.

Industry Standards - (IS3)

NEMA Type 3R, 12 and Type 13
UL Listed Type 3R and 12
CSA Type 3R and 12
IEC 60529
IP 55

Notes

Special Instructions apply for IS3, IS4 and IS6 to maintain the environmental rating of Type 3R for these parts. Instructions are located on the enclosure door. Drip shield is required on IS3, drip shield is recommended on IS4 and IS6. Drain holes are required on all.

Specifications

Item Number	SCE-604810LP
Brand	Saginaw
1 Enclosure Rating	NEMA 12
1 Enclosure Rating	NEMA 3R
Enclosure Depth (IN)	10
Enclosure Height (IN)	60
Enclosure Type	2DR LP Enclosure
Enclosure Width (IN)	48
