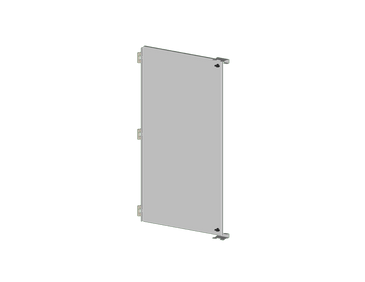

SCE-DF6048 | NEMA N/A | Panel, Dead Front (Overlaping Two Door), 56H x 22W x 1D | Saginaw

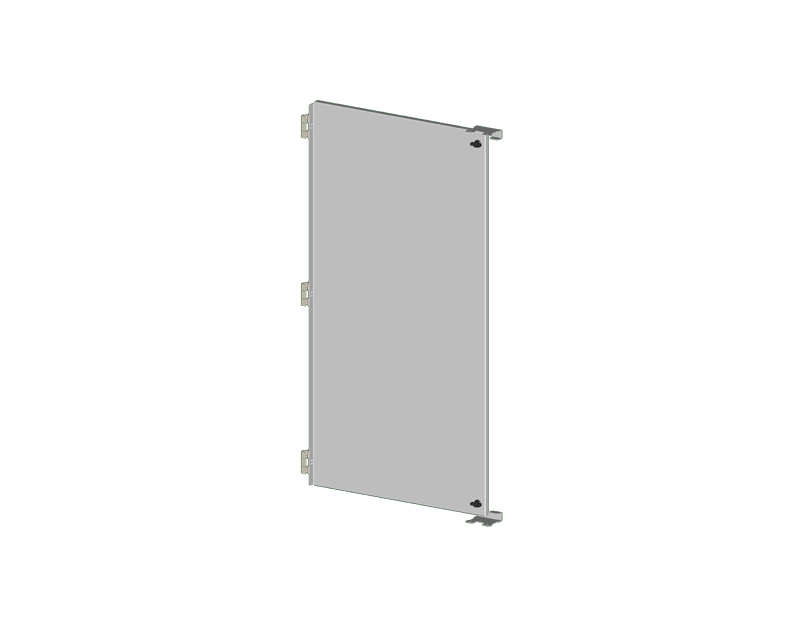

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to SCE-DF6048

Jump to: Documents Overview Specifications Reviews

Documents and manuals

Saginaw SCE-DF6048 Documents

FREIGHT DAMAGE POLICY CAD Package Dead Front Overlapping Door Installation Instructions More Info

Overview

Details for SCE-DF6048

NEMA N/A | Panel, Dead Front (Overlaping Two Door), 56H x 22W x 1D

Construction

0.075 In. carbon steel.

Application

Designed for installation into two-door enclosures with overlapping doors, to be installed in the front of an enclosure and to swing out of the enclosure. Kit consists of heavy gauge brackets, hinges, and mounting hardware. Installed by detaching door hinge from enclosure and installing swing out panel kit to the existing holes. Hinge is supplied with the enclosure. Made from steel. Kit contains one panel and all hardware for one dead front behind one door.

Finish

Powder coated white inside and out.

Industry Standards - (IS17)

NEMA Not Applicable
UL Not Applicable
CSA N/A
