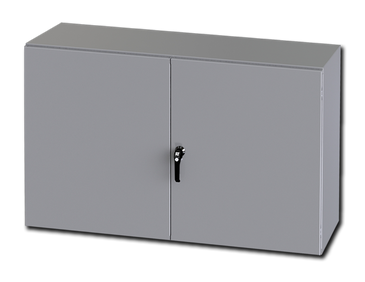

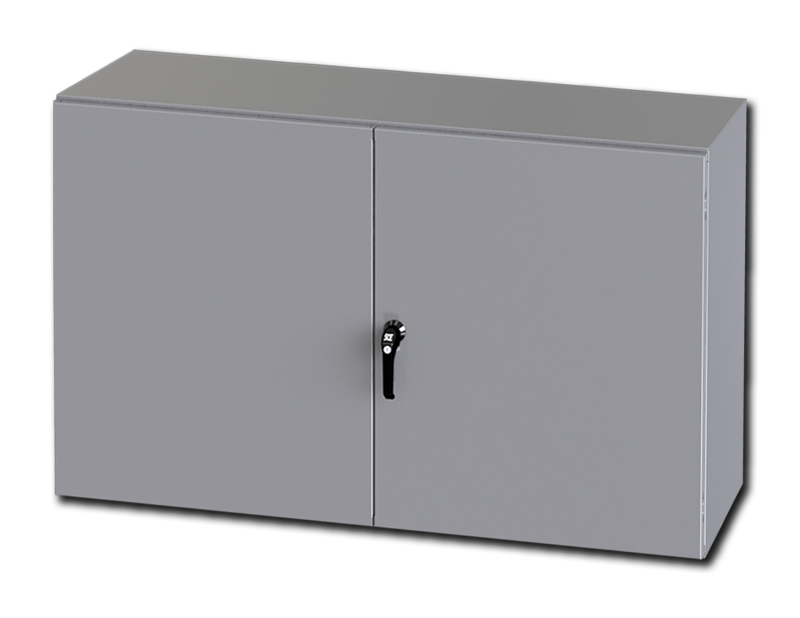

SCE-426012WFALP | NEMA 3R, 12 | WFALP Enclosure, 42H x 60W x 12D | Saginaw

Brand: SaginawSKU: SCE-426012WFALP
Saginaw | SCE-426012WFALP
The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to SCE-426012WFALP
Overview & Specifications ReviewsParts & Accessories

Overview Details for SCE-426012WFALP

Construction

  • 0.075 In. carbon steel.
  • Seams continuously welded and ground smooth.
  • Flange trough collar around all sides of door opening.
  • Collar studs 3/8-16 provided for mounting optional panels.
  • Mounting holes in back of the enclosure for wall mounting.
  • Mounting hardware, sealing washers and hole plugs included.
  • Black keylocking padlocking handles.
  • 3-point latching mechanism.
  • Overlapping Doors.
  • Removable print pocket.
  • Pour in place oil and water resistant gasket
  • Ground stud on door and body.

Application

Designed to house electrical controls, instruments and components used in an indoor or outdoor environment to provide a degree of protection for the equipment inside the enclosure against ingress of solid foreign objects (falling dirt); and provide a degree of protection with respect to the harmful effects on the equipment due to the ingress of water (rain, sleet, snow). For outdoor application a drip shield and drain vent is recommended.

For details about the design, performance expectations, applications and design suggestions - See Design Considerations www.saginawcontrol.com/instman/considerations.pdf

Finish

ANSI-61 gray powder coating inside and out.

Industry Standards - (IS3)

  • NEMA Type 3R, 12 and Type 13
  • UL Listed Type 3R and 12
  • CSA Type 3R and 12
  • IEC 60529
  • IP 55

Notes

Special Instructions apply for IS3, IS4 and IS6 to maintain the environmental rating of Type 3R for these parts. Instructions are located on the enclosure door. Drip shield is required on IS3, drip shield is recommended on IS4 and IS6. Drain holes are required on all.

Specifications

Item Number SCE-426012WFALP
Brand Saginaw
1 Enclosure Rating NEMA 12
1 Enclosure Rating NEMA 3R
Enclosure Depth (IN) 12
Enclosure Height (IN) 42
Enclosure Type WFALP Enclosure
Enclosure Width (IN) 60
