SCE-NADFK-3 | Kit, Swing-Out Panel Mounting | 5 (H) x 6 (W) x 2 (D) | Saginaw

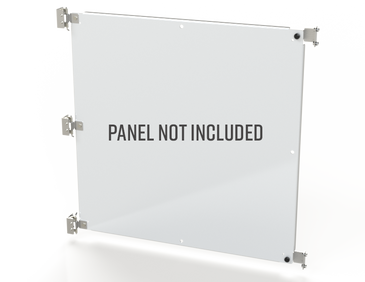

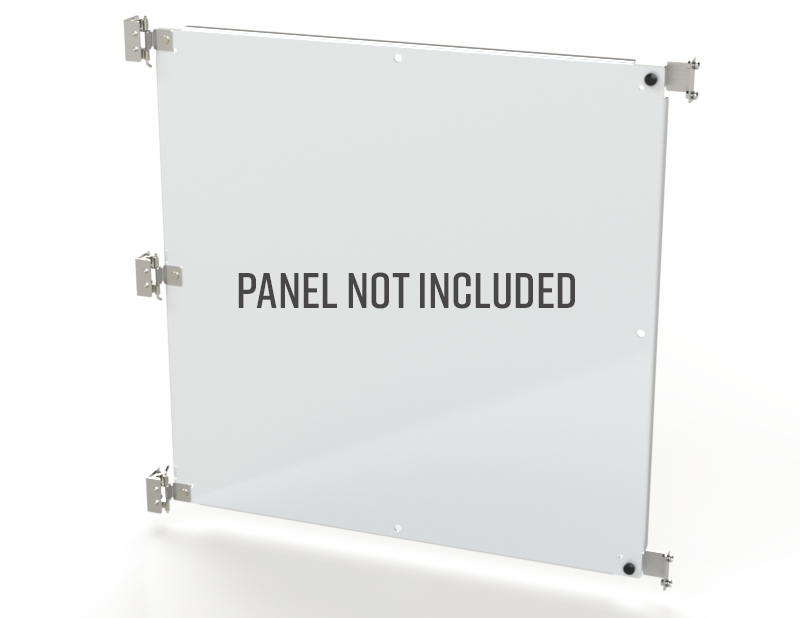

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to SCE-NADFK-3

Jump to: Documents Overview Specifications Reviews

Documents and manuals

Saginaw SCE-NADFK-3 Documents

FREIGHT DAMAGE POLICY CAD Package Swing Panel Assembly for LP Enclosures More Info

Overview

Details for SCE-NADFK-3

Kit, Swing-Out Panel Mounting | 5 (H) x 6 (W) x 2 (D)

Application

Swing out panel kits consist of heavy gauge brackets and hinges. Installed by drilling small hole in the side of the enclosure and bolting the bracket in place. Sealing washers are provided to ensure that the enclosure will meet original standards after installation. For use in any NEMA 4 and 12 LP style wall mount enclosure where A x B dimensions are 12" x 12" or larger.

Industry Standards - (IS17)

NEMA Not Applicable
UL Not Applicable
CSA N/A

Notes

Cutout will need to be added for clearance of Defeater and defeater hook when use in Flange mount disconnect enclosure
