TSP-8003 | Actuator: Tri-State with Pressure Sensor, 40in-lbs, 90 sec. | KMC
Actuator: Tri-State with Pressure Sensor, 40in-lbs, 90 sec.
Documents and manuals
Overview
Details for TSP-8003
Actuator: Tri-State with Pressure Sensor, 40in-lbs, 90 sec.

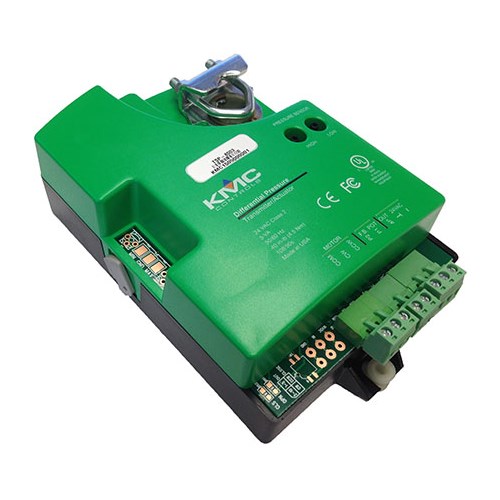

The Conquest TSP-8003 is a 40 in-lb. tri-state actuator with a differential air pressure sensor, typically used in Conquest VAV (Variable Air Volume) dual-duct applications as a secondary actuator.
The TSP-8003 connects directly to a Conquest BAC-9000 series VAV controller-actuator for easy installation. No setup for the TSP-8003 is required since all programming and sequences are part of the BAC-9001.
With integrated actuator and air pressure sensor, it is ideal for new installations and upgrades of less-efficient equipment. It easily mounts to terminal boxes by securing a “V” clamp on the shaft and securing a single-screw anti-rotation bracket.
Application options include:
- Dual duct VAV or CAV
- Building pressure control damper*
- Bypass damper*
- Economizer damper*
*NOTE: Requires custom programming in the controller.
Specifications
- Actuator Type
Electric
- Brand
KMC Controls
- Control Input
24 VAC
- Fail-Safe
No
- Feedback
Feedback Pot
- Input Types
Tri-state
- Mounting
V-Bolt/ Screws
- Power Supply
24 VAC
- Timing (sec)
90
- Torque
40 in-lb
- VAV Control
Pressure Independent
- VAV Type
Dual Duct
