MEP-5223 | Damper Actuator | 10 in-lb | Non-Spring Return | 24V | Floating | KMC
Damper Actuator | 10 in-lb | Non-Spring Return | 24V | Floating
Documents and manuals
Overview
Details for MEP-5223
Damper Actuator | 10 in-lb | Non-Spring Return | 24V | Floating

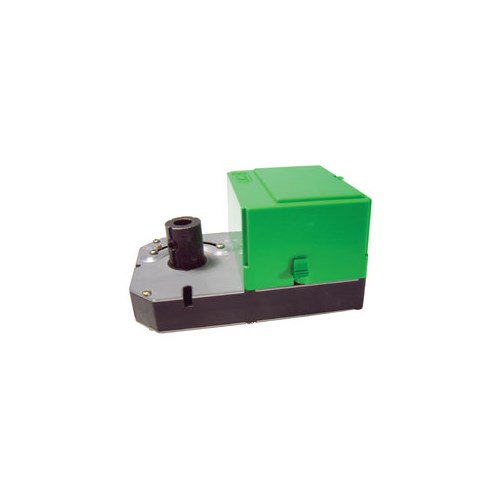

The MEP-5223 and MEP-5233 are replacement damper actuators designed for residential dampers. The 24 VAC, tri-state, 10 in-lb., direct-coupled actuator provides smooth and quiet performance, with fast, 15-second closings and openings.
These actuators are intended for replacement on series B and C style residential dampers only—not the A series dampers. The MEP-5223 is intended for replacement on round dampers with a fully closed blade angle of 45 degrees. The MEP-5233 is intended for replacement on rectangular dampers with a fully closed blade angle of 90 degrees.
MEP-5223 45-degree, replaces:
• Carrier DAMPACT45DEG
• Carrier 33CC500621
• KMC MEP-5203-30
MEP-5233 90-degree, replaces:
• Carrier DAMPACT90DEG
• Carrier 33CC500623
• KMC MEP-5213-30
• Johnson M9101-AGA-2N2
See also the MEP-4101 fast-acting, tri-state actuator.
Specifications
- Actuator Type
Electric
- Brand
KMC Controls
- Control Input
24 VAC
- Fail-Safe
No
- Input Types
Tri-state
- Mounting
V-Bolt/ Screws
- Normality (Fail)
Fail In Place
- Power Supply
24 VAC
- Selection Guide
Actuator-Only
- Timing (sec)
15
- Torque
10 in-lb
