BAC-4203CW0001 | AppStat: FCU, 3-Speed or Mod Fan, On/Off or Mod Valves, Occ | KMC

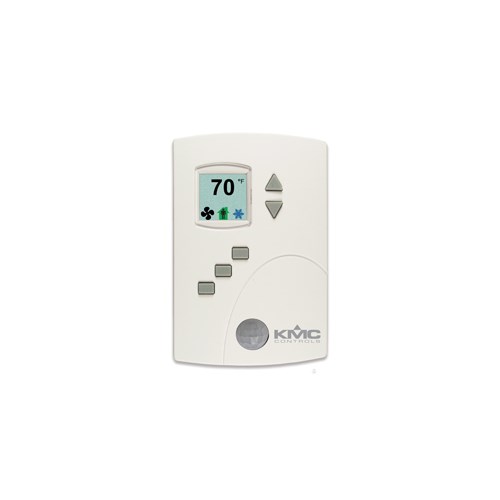

AppStat: FCU, 3-Speed or Mod Fan, On/Off or Mod Valves, Occ

The KMC AppStat combines the power of a space-mounted equipment controller with the convenience of built-in temperature, humidity and motion sensors. The controllers include a wide range of factory supplied programs for the following applications.

• Two and four pipe fan coil units
• Roof top units
• Heat pump units
• Packaged and split unitary systems

Stand alone operation No special programming, software applications, or setup tools are required to configure and commission an AppStat.

New or retrofit applications The attractive two-piece design is ideal for new installations or upgrades of older, less efficient thermostats.

Bright, full-color display The full color display is easy to read across a room even in bright sunlight. Users can easily choose between Fahrenheit or Celsius values.

Network ready All models are native BACnet, Application Specific Controllers ready to connect to a BACnet MS/TP network.

Fan Coil UnitsAppStats for the control of fan coil units are available with inputs, outputs, and sequences of operation for the following functions.

• Three-speed or modulating fan control
• Automatic or manual fan control
• Two-pipe heating and cooling with either on/off or modulating valves
• Four-pipe heating and cooling with either on/off or modulating valves
• Remote space temperature sensor
• Local temperature setback mode based on optional built-in motion sensor
• Dehumidification on models with humidity sensor

Roof Top and Unitary UnitsAppStats for the control of roof top or similar packaged or split unitary units are available with inputs, outputs, and sequences of operation for the following functions.

• Automatic or manual fan control
• Modulating valves or on/off heating and cooling valves.
• One or two stage heating
• One or two stage cooling
• Optional economizer
• Remote space temperature sensor
• Local temperature setback mode based on optional built-in motion sensor
• Dehumidification on models with humidity sensor

Heat Pump UnitsAppStats for the control of heat pump units are available with inputs, outputs, and sequences of operation for the following functions.

• Two stages of heat and two stages of cooling plus auxiliary heat
• Optional economizer
• Dehumidification-in models with auxiliary heat and a humidity sensor
• Local temperature setback mode based on optional built-in motion sensor
• Automatic or manual fan control
