VH1845BNH943BUB | 3/4" 3W BALL VALVE 11.7CV; 3/4" 3W BALL VALVE 11.7CV | Johnson Controls

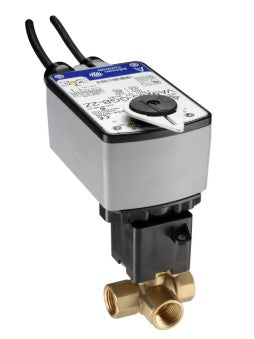

The photo is for representation purposes only and may not be a photo of product being purchased.
Overview
Details for VH1845BNH943BUB
3/4" 3W BALL VALVE 11.7CV; 3/4" 3W BALL VALVE 11.7CV
- 3/4" 3-Way Ball Valve - No Characterizing Disc
- Hot Water Chilled Water Up To 50% Glycol 15# Steam / -22°F to 284°F
- CV 11.7/5.8
- 85 to 264 VAC
- On/Off
- Spring Return - Normally Closed
- 27 in-lb Torque
- 48 in. Appliance Cable
- 1 x SPDT
- Female NPT
- <75 sec Runtime
- Close-Off 200 psi
- Stainless Steel Ball & Stem
- NEMA 2
- 010.00 - 014.99
- Meets Buy American Requirements
- 010.00 - 014.99
Specifications
| Item Number | VH1845BNH943BUB |
| Brand | Johnson Controls |
| Category | Valves & Valve Actuators |
| Section | Ball 3-Way w/ Electric Actuator |
| Section | Valves & Actuators |
| SubCategory | Ball 3-Way w/ Electric Actuator |
