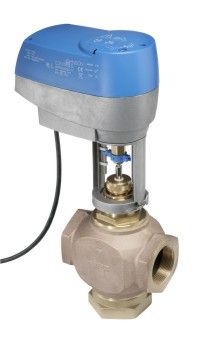

VG7842RT+71CHGA | 1-1/2";28.9CV; NPT; 3WAY;; BRASS TRIM GLOBE VALVE; VA7810-HGA-2; NSR; ELEC;SELECTABLE CONTROL;W/O SW | Johnson Controls

1-1/2";28.9CV; NPT; 3WAY;; BRASS TRIM GLOBE VALVE; VA7810-HGA-2; NSR; ELEC;SELECTABLE CONTROL;W/O SW

Description

VG7000 Series Globe Valves are designed to regulate the flow of hot water, chilled water, glycol solutions, and steam in response to the demand of a controller in HVAC systems. Available in sizes 1/2 through 2 in. (DN15 through DN50), this family of two- and three-way bronze valves is available in Normally Open (N.O.), Normally Closed (N.C.), and three-way mixing configurations

Features

• available in brass and stainless steel trim
• available with spring-return and non-spring-return actuators
• meets requirements of American Society of Mechanical Engineers (ASME) B16.15 class 250
• long life replaceable ring packing provides highest reliability and longest life
• every valve tested for tight shutoff
• optional end switches available
• voltage 24 VAC/VDC, 20 VA transformer sizing

• 1 1/2" 3-Way Globe Valve
• Chilled Water Hot Water Up to 50% Glycol Steam - 35 to 284?F 38 psig Saturated Steam
• CV 28.9
• 24 VAC
• Proportional [0(2)..10 VDC]
• Non-Spring Return
• 180 lb-f Torque
• 48 in. Halogen Free Cable
• Female NPT
• 48..114 sec Runtime
• Close-Off 71/76 psi
• Brass Trim
• NEMA 2
