VG7842NT+7150G | 3W1IN NPT11.6 VA7150 ELEC | Johnson Controls

3W1IN NPT11.6 VA7150 ELEC

Description

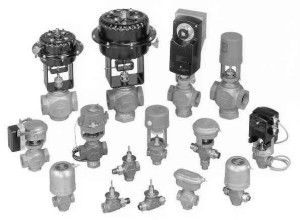

VG7000 Series Brass Trim Globe Valves with VA-715x Series Non-Spring-Return Electric Actuators control hot or chilled water, or steam. Refer to the VG7000 Series Bronze Control Valves Product Bulletin (LIT-977140) for important product application information.

Features

•  90 lb force provides tight closeoff
•  Direct coupled no linkage required
•  Magnetic clutch protects gearing, ensures tight closeoff
•  Controls hot water, chilled water, or steam
•  Fits VG7000 Series valves 1/2 through 2 in.
• Valve body static pressure rating:ANSI Class 250
•  Factory or field assembly
•  Voltage: 24 VAC, 50/60 Hz, 4.7 VA Repair information If the VG7000 Series Globe Valve fails to operate within its specifications, replace the valve body, actuator, or entire assembly. For replacement parts, contact the nearest Johnson Controls® representative

• 1" 3-Way Globe Valve
• Chilled Water Hot Water Up To 50% Glycol Steam - 35 to 284?F 38 psig Saturated Steam
• CV 11.6
• 24 VAC
• On/Off & Floating Point
• Non-Spring Return
• 90 lb-f Torque
• Screw Terminals
• Female NPT
• 70..165 sec Runtime
• Close-Off 86/100 psi
• Brass Trim
• NEMA 1
