VG7443ST+72CHGC | 2"; 46.2 CV; NPT; N.C.;; 2W; SS TRIM GLOBE VALVE;VA7820-HGC-2; SR; ELEC;SELECTABLE CONTROL; 2 SW | Johnson Controls
Documents and manuals
Johnson Controls VG7443ST+72CHGC Documents
Overview
Details for VG7443ST+72CHGC

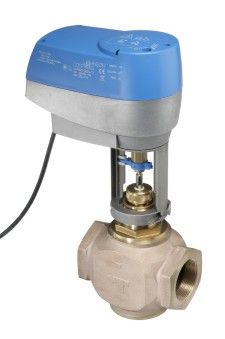

2"; 46.2 CV; NPT; N.C.;; 2W; SS TRIM GLOBE VALVE;VA7820-HGC-2; SR; ELEC;SELECTABLE CONTROL; 2 SW
Description
VG7000 Series Globe Valves are designed to regulate the flow of hot water, chilled water, glycol solutions, and steam in response to the demand of a controller in HVAC systems. Available in sizes 1/2 through 2 in. (DN15 through DN50), this family of two and three-way bronze valves is available in Normally Open (N.O.), Normally Closed (N.C.), and three-mixing configurations. Refer to the VG7000 Series Bronze Control Valves Product Bulletin (LIT-977140) for important product application information.
Features
- Available in brass and stainless steel trim
- Available with spring-return and non-spring-return actuators
- Meets requirements of American Society of Mechanical Engineers (ASME) B16.15 class 250
- Long life replaceable ring packing provides highest reliability and longest life • Every valve tested for tight shutoff
- Optional end switches available
- Voltage 24 VAC/VDC, 20 VA transformer sizing
Repair information
If the VG7000 Series Globe Valve fails to operate within its specifications, replace the valve body, actuator, or entire assembly. For replacement parts, contact the nearest Johnson Controls® representative.
- 2" 2-Way Globe Valve
- Chilled Water Hot Water Up to 50% Glycol Steam - 35 to 338°F 38 psig Saturated Steam
- CV 46.2
- 24 VAC
- Proportional [0(2)..10 VDC]
- Spring Return - Normally Closed
- 180 lb-f Torque
- 48 in. Halogen Free Cable
- 2 x SPDT
- Female NPT
- 48..114 sec Runtime
- Close-Off 28 psi
- Stainless Steel Trim
- NEMA 2
