VG7443NT+423GGA | 2W 1" NPT 11.6CV SS TRIM; 1" NPT 11.6 CV NC WITH VA-4233-GGA-2 ELEC ACT PROPORTIONAL | Johnson Controls

2W 1" NPT 11.6CV SS TRIM; 1" NPT 11.6 CV NC WITH VA-4233-GGA-2 ELEC ACT PROPORTIONAL

Description

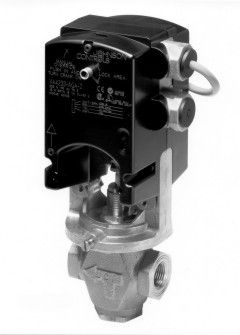

VG7000 Series Stainless Steel Trim Globe Valves with VA-4233 Series Spring-Return Electric Actuators control hot or chilled water, or steam. Refer to the VG7000 Series Bronze Control Valves Product Bulletin (LIT-977140) for important product application information.

Features

•  Spring return stem up
•  61 lb force provides tight shutoff
•  Packing spring-loaded PTFE and elastomer V-rings
•  Manual opener
•  Fits VG7000 Series valves 1/2 through1-1/4 in.
•  Valve body static pressure rating: ANSI Class 250
•  Optional auxiliary switches available
•  Factory or field assembly
•  Voltage: 20 VAC to 30 VAC, 50/60 Hz, 12 VA Repair information If the VG7000 Series Globe Valve fails to operate within its specifications, replace the valve body, actuator, or entire assembly. For replacement parts, contact the nearest Johnson Controls® representative.

• 1" 2-Way Globe Valve
• Chilled Water Hot Water Up To 50% Glycol Steam - 35 to 250°F 15 psig Saturated Steam
• CV 11.6
• 20..30 VAC/24 VDC
• Proportional [0(2)..10 VDC]
• Spring Return - Normally Closed
• 61 lb-f Torque
• 48 in. Cable
• Female NPT
• 76 sec Runtime
• Close-Off 39 psi
• Stainless Steel Trim
• NEMA 2
