VG7441ES+3801E | NC1/2 NPT 1.9W/3801 9-13# | Johnson Controls

NC1/2 NPT 1.9W/3801 9-13#

Description

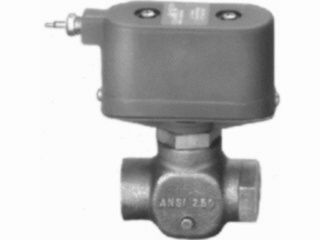

VG7000 Series Brass Trim Globe Valves with V-3801 Compact Pneumatic Actuators control hot or chilled water or 15 psig saturated steam. Refer to the VG7000 Series Bronze Control Valves Product Bulletin (LIT-977140) for important product application information.

Features

• compact; fits in tight spaces such as baseboard radiators and convectors
• rugged actuator die-cast enclosure, enclosed spring
• effective diaphragm area: 4 sq. in.
• controls: hot or chilled water, 15 psig saturated steam
• valve trim: brass
• valve stem: stainless steel
• maximum supply air pressure: 25 psig (172 kPa)
• fluid temperature: 35°F to 248°F (2°C to 120°C)
• valve body static pressure rating: ANSI Class 250
• factory or field assembly

• 1/2" 2-Way Globe Valve
• CV 1.8
• 09-13 psig
• 4 sq. in. Effective Diaphragm Area
• Spring Return - Normally Closed
• Female NPT
• Brass Trim
