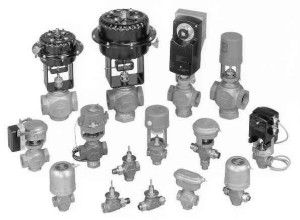

The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to VG7243RT+7152G
Documents and manuals
Johnson Controls VG7243RT+7152G Documents
Overview
Details for VG7243RT+7152G
2W1-1/2 NPT29 VA7152 ELEC
Description
VG7000 Series Stainless Steel Trim Globe Valves with VA-715x Series Pneumatic Actuators control hot or chilled water, or steam. Refer to the VG7000 Series Bronze Control Valves Product Bulletin (LIT-977140) for important product application information.
Features
- 90 lb force provides tight closeoff
- Direct coupled; no linkage required
- Packing: spring-loaded PTFE and elastomer V-rings
- Magnetic clutch protects gearing, ensures tight closeoff
- Controls hot water, chilled water, or steam
- Fits VG7000 Series valves 1/2 through 2 in.
- Valve body static pressure rating: ANSI Class 250
- Factory or field assembly
- Voltage: 24 VAC, 50/60 Hz, 4.7 VA
Repair information
If the VG7000 Series Globe Valve fails to operate within its specifications, replace the valve body, actuator, or entire assembly. For replacement parts, contact the nearest Johnson Controls® representative.
- 1 1/2" 2-Way Globe Valve
- Chilled Water Hot Water Up To 50% Glycol Steam - 35 to 338°F 100 psig Saturated Steam
- CV 28.9
- 24 VAC
- Proportional [0..10 VDC]
- Non-Spring Return
- 90 lb-f Torque
- Screw Terminals
- Female NPT
- 70..165 sec Runtime
- Close-Off 21 psi
- Stainless Steel Trim
- NEMA 1
Specifications
Item Number | VG7243RT+7152G |
Brand | Johnson Controls |
Category | Valves & Valve Actuators |
Section | Globe 2 Way w/ Electric Actuator |
Section | Valves & Actuators |
SubCategory | Globe 2 Way w/ Electric Actuator |
