VG7243GT+821E00 | 2W1/2NPT4.6MP82 9-13# | Johnson Controls

2W1/2NPT4.6MP82 9-13#

Description

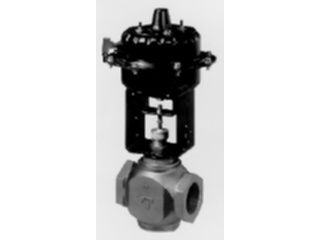

VG7000 Series Stainless Steel Trim Globe Valves with MP82 Series Pneumatic Actuators control hot or chilled water, or 100 psig saturated steam.

Features

• industrial-grade, drawn-steel actuator
• corrosion-resistant, electro-painted finish
• effective diaphragm area: 25 sq. in.
• controls: hot or chilled water, 100 psig saturated steam
• valve trim: stainless steel
• packing: spring-loaded PTFE and elastomer V-rings
• maximum supply air pressure: 25 psig (172 kPa)
• fluid temperature: 35°F to 338°F (2°C to 170°C), 100 psig saturated steam
• valve body static pressure rating: ANSI Class 250
• factory or field assembly
• For optional V-9502-95 Positioner, change 00 at the end of the code number to 01
