VG7241PT | VALVE 2-W PDTC DN32 | Johnson Controls
Documents and manuals
Johnson Controls VG7241PT Documents
Overview
Details for VG7241PT

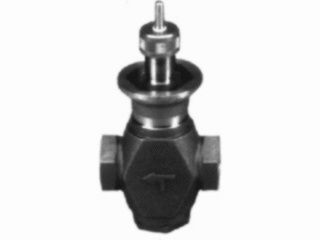

VALVE 2-W PDTC DN32
Description
The VG7000 Series Bronze Globe Valves accurately regulate the flow of water or steam in response to the demand of a controller in HVAC systems. These valves are available in normally open, normally closed, and three-way mixing configurations. Both electric and pneumatic actuators are available.
Refer to the VG7000 Series Bronze Control Valves Product Bulletin (LIT-977140) for important product application information.
Features
- Size ranges of 1/2 in. Through 2 in. With several styles of electric and pneumatic actuators offer a broad selection
- American National Standards Institute (ANSI) Class 250 (pressure/temperature) standard compliant
- Tight shutoff testing ensures occupant comfort and energy conservation
- Standard Johnson Controls® Ring Pack Packings provide industry-leading reliability and operating life
- Complete actuator interchangeability allows easy field retrofit or mounting using standardized mounting kits
- All valve sizes available with brass trim or stainless steel trim for use in saturated steam applications up to 100 psig
Repair information
If the VG7000 Series Globe Valve fails to operate within its specifications, replace the valve body, actuator, or entire assembly. For replacement parts, contact the nearest Johnson Controls representative.
- 1-1/4 inch
- Water & Steam
- Equal Percentage Flow
- Female NPT
- Brass
- 250 ANSI
- Cv 18.5
Specifications
| Item Number | VG7241PT |
| Brand | Johnson Controls |
| Category | Valves & Valve Actuators |
| Control Valves Type | Globe Valve |
| Section | Globe Valves |
| Section | Valves & Actuators |
| SubCategory | Globe Valves |
