VG7241NT+72CHGA | 1"; 11.6 CV; NPT; N.O.;; 2W BRASS TRIM GLOBE VAL; VA7820-HGA-2; SR; ELEC;SELECTABLE CONTROL;W/O SW | Johnson Controls
Documents and manuals
Johnson Controls VG7241NT+72CHGA Documents
Overview
Details for VG7241NT+72CHGA

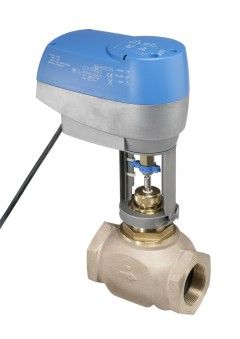

1"; 11.6 CV; NPT; N.O.;; 2W BRASS TRIM GLOBE VAL; VA7820-HGA-2; SR; ELEC;SELECTABLE CONTROL;W/O SW
Description
VG7000 Series Globe Valves are designed to regulate the flow of hot water, chilled water, glycol solutions, and steam in response to the demand of a controller in HVAC systems. Available in sizes 1/2 through 2 in. (DN15 through DN50), this family of two- and three-way bronze valves is available in Normally Open (N.O.), Normally Closed (N.C.), and three-way mixing configurations.
Refer to the VG7000 Series Bronze Control Valves Product Bulletin (LIT-977140) for important product application information.
Features
- available in brass and stainless steel trim
- available with spring-return and non-spring-return actuators
- meets requirements of American Society of Mechanical Engineers (ASME) B16.15 class 250
- long life replaceable ring packing provides highest reliability and longest life
- every valve tested for tight shutoff
- optional end switches available
- voltage 24 VAC/VDC, 20 VA transformer sizing
- 1" 2-Way Globe Valve
- Chilled Water Hot Water Up to 50% Glycol Steam - 35 to 284°F 38 psig Saturated Steam
- CV 11.6
- 24 VAC
- Proportional [0(2)..10 VDC]
- Spring Return - Normally Open
- 180 lb-f Torque
- 48 in. Halogen Free Cable
- Female NPT
- 48..114 sec Runtime
- Close-Off 182 psi
- Brass Trim
- NEMA 2
Specifications
Item Number | VG7241NT+72CHGA |
Brand | Johnson Controls |
Category | Valves & Valve Actuators |
Section | Globe 2 Way w/ Electric Actuator |
Section | Valves & Actuators |
SubCategory | Globe 2 Way w/ Electric Actuator |
