VG7241GT+7150G | 2W1/2 NPT 4.6 VA7150 ELEC | Johnson Controls
Documents and manuals
Johnson Controls VG7241GT+7150G Documents
Overview
Details for VG7241GT+7150G
2W1/2 NPT 4.6 VA7150 ELEC
Description

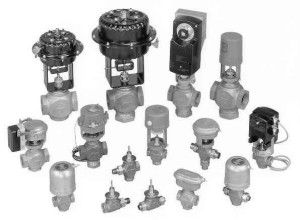

VG7000 Series Brass Trim Globe Valves with VA-715x Series Non-Spring-Return Electric Actuators control hot or chilled water, or steam. Refer to the VG7000 Series Bronze Control Valves Product Bulletin (LIT-977140) for important product application information.
Features
• 90 lb force provides tight closeoff • direct coupled no linkage required • magnetic clutch protects gearing, ensures tight closeoff • controls hot water, chilled water, or steam • fits VG7000 Series valves 1/2 through 2 in. • valve body static pressure rating: ANSI Class 250 • factory or field assembly • voltage: 24 VAC, 50/60 Hz, 4.7 VA
Repair Information
If the VG7000 Series Globe Valve fails to operate within its specifications, replace the valve body, actuator, or entire assembly. For replacement parts, contact the nearest Johnson Controls® representative.
- 1/2" 2-Way Globe Valve
- Chilled Water Hot Water Up To 50% Glycol Steam - 35 to 284°F 38 psig Saturated Steam
- CV 4.6
- 24 VAC
- On/Off & Floating Point
- Non-Spring Return
- 90 lb-f Torque
- Screw Terminals
- Female NPT
- 70..165 sec Runtime
- Close-Off 216 psi
- Brass Trim
- NEMA 1
Specifications
Item Number | VG7241GT+7150G |
Brand | Johnson Controls |
Category | Valves & Valve Actuators |
Section | Globe 2 Way w/ Electric Actuator |
Section | Valves & Actuators |
SubCategory | Globe 2 Way w/ Electric Actuator |
