VG7241ET+7150G | 2W1/2 NPT 1.8 VA7150 ELEC | Johnson Controls

2W1/2 NPT 1.8 VA7150 ELEC

Description

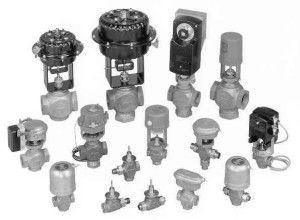

VG7000 Series Brass Trim Globe Valves with VA-715x Series Non-Spring-Return Electric Actuators control hot or chilled water, or steam. Refer to the VG7000 Series Bronze Control Valves Product Bulletin (LIT-977140) for important product application information.

Features

• 90 lb force provides tight closeoff
• direct coupled no linkage required
• magnetic clutch protects gearing, ensures tight closeoff
• controls hot water, chilled water, or steam
• fits VG7000 Series valves 1/2 through 2 in.
• valve body static pressure rating: ANSI Class 250
• factory or field assembly
• voltage: 24 VAC, 50/60 Hz, 4.7 VA

• 1/2" 2-Way Globe Valve
• Chilled Water Hot Water Up To 50% Glycol Steam - 35 to 284°F 38 psig Saturated Steam
• CV 1.8
• 24 VAC
• On/Off & Floating Point
• Non-Spring Return
• 90 lb-f Torque
• Screw Terminals
• Female NPT
• 70..165 sec Runtime
• Close-Off 345 psi
• Brass Trim
• NEMA 1
