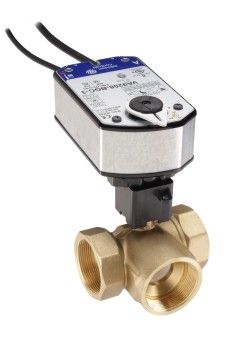

1-1/2" 3W BALL VAL 46.8CV; SS TRIM; HI TEMP LINKAGE;PROP; SP CW; 2 SWITCHES
Description
VG1000 Series Ball Valves are designed to regulate the flow of hot or chilled water and, for some models, low-pressure steam in response to the demand of a controller in HVAC systems. Available in sizes 1/2 through 2 in. (DN15 through DN50), this family of twoand three-way forged brass valves is factory or field mounted to Johnson Controls® VA9104, M9106, M9109, and M9100 Series Non-Spring-Return and VA9203 and VA9208 Series Spring-Return Electric Actuators for on/off, floating, or proportional control. Refer to the VG1000 Series Forged Brass Ball Valves Product Bulletin (LIT-977132) for important product application information
Features
- Forged Brass Body — provides 580 psig static pressure rating.
- 300 Series Stainless Steel Ball and Stem Assembly — tolerates high-temperature water or 15 psi saturated steam with fluid temperatures of -22°F to 284F (-30°C to 140C) or where a higher degree of corrosion protection is desired.
- Ethylene Propylene Diene Monomer (EPDM) Double O-Ring Stem Seal — provides a leak-free seal; the packing has been tested and is leak-free after 200,000 cycles in iron-oxide contaminated water.
- Blowout-Proof Stem — protects the user from the risk of injury.
- 1 1/2" 3-Way Ball Valve - No Characterizing Disc
- Hot Water Chilled Water Up To 50% Glycol 15# Steam / -22°F to 284°F
- CV 46.8/23.4
- 24 VAC/VDC
- Proportional [0(2) to 10 VDC]
- Spring Return - Normally Closed
- 70 in-lb Torque
- 48 in. Appliance Cable
- 2 x SPDT
- Female NPT
- 150 sec Runtime
- Close-Off 200 psi
- Stainless Steel Ball & Stem
- NEMA 2
- 045.00 - 049.99
Specifications
Item Number | VG1845ESH958GGC |
Brand | Johnson Controls |
Category | Valves & Valve Actuators |
Control Input | Modulating |
Control Valves Type | Ball Valve |
Section | Ball 3-Way w/ Electric Actuator |
Section | Valves & Actuators |
Spring Return | Spring Return |
SubCategory | Ball 3-Way w/ Electric Actuator |
Valve Size | 1.5" - 3-Way |
Voltage | 24V |
