VG1841ES+928GGA | 1-1/2" 3W BALL VAL 46.8CV; BRASS TRIM SPRG RTN CCWPROP CTL; WITHOUT SWITCH | Johnson Controls
Documents and manuals
Johnson Controls VG1841ES+928GGA Documents
Overview
Details for VG1841ES+928GGA

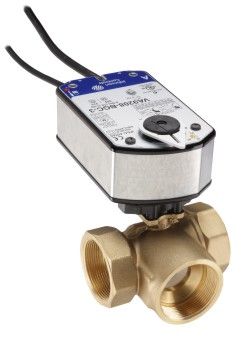

1-1/2" 3W BALL VAL 46.8CV; BRASS TRIM SPRG RTN CCWPROP CTL; WITHOUT SWITCH
Description
VG1000 Series Ball Valves are designed to regulate the flow of hot or chilled water and, for some models, low pressure steam in response to the demand of a controller in HVAC systems. Available in sizes 1/2 through 2 in. (DN15 through DN50), this family of two- and three-way forged brass valves is factory or field mounted to Johnson Controls® VA9104, M9106, M9109, and M9100 Series Non-Spring-Return and VA9203 and VA9208 Series Spring-Return Electric Actuators for on/off, floating, or proportional control.
Features
- Forged Brass Body — provides 580 psig static pressure rating.
- Chrome-Plated Brass Ball and Stem Assembly Standard — handles both chilled and hot water applications with a fluid temperature range of 23°F to 203°F (-5°C to 95°C).
- Graphite-Reinforced Polytetrafluoroethylene (PTFE) Seats — include 15% graphite-reinforced ball seals, providing better wear resistance.
- 500:1 Rangeability — provides accurate control under all load conditions.
- Maintenance-Free Design — performs without failure in excess of 200,000 full stroke cycles in iron-oxide contaminated water.
- 1 1/2" 3-Way Ball Valve - No Characterizing Disc
- Hot Water Chilled Water Up To 50% Glycol / -22°F to 212°F
- CV 46.8/23.4
- 24 VAC/VDC
- Proportional [0(2) to 10 VDC]
- Spring Return - Normally Open
- 70 in-lb Torque
- 120 in. Plenum Cable
- Female NPT
- 150 sec Runtime
- Close-Off 200 psi
- Chrome-Plated Brass Ball & Nickel-Plated Brass Stem
- NEMA 2
- 045.00 - 049.99
Specifications
Item Number | VG1841ES+928GGA |
Brand | Johnson Controls |
Category | Valves & Valve Actuators |
Control Input | Modulating |
Control Valves Type | Ball Valve |
Section | Ball 3-Way w/ Electric Actuator |
Section | Valves & Actuators |
Spring Return | Spring Return |
SubCategory | Ball 3-Way w/ Electric Actuator |
Valve Size | 1.5" - 3-Way |
Voltage | 24V |
