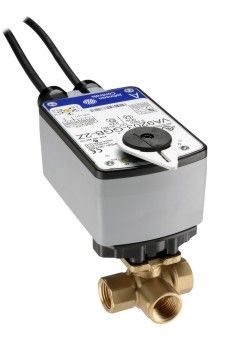

1/2" 3W BALL VALVE 1.2CV; BRASS TRIM SPRG RTN CCWON/OFF; WITHOUT SWITCH

Description

VG1000 Series Ball Valves are designed to regulate the flow of hot or chilled water and, for some models, low pressure steam in response to the demand of a controller in HVAC systems. Available in sizes 1/2 through 2 in. (DN15 through DN50), this family of two- and three-way forged brass valves is factory or field mounted to Johnson Controls® VA9104, M9106, M9109, and M9100 Series Non-Spring-Return and VA9203 and VA9208 Series Spring-Return Electric Actuators for on/off, floating, or proportional control.

Refer to the VG1000 Series Forged Brass Ball Valves Product Bulletin (LIT-977132) for important product application information.

Features

• Forged Brass Body — provides 580 psig static pressure rating.
• Chrome-Plated Brass Ball and Stem Assembly Standard — handles both chilled and hot water applications with a fluid temperature range of 23°F to 203°F (-5°C to 95°C).
• Graphite-Reinforced Polytetrafluoroethylene (PTFE) Seats — include 15% graphite-reinforced ball seals, providing better wear resistance.
• 500:1 Rangeability — provides accurate control under all load conditions.
• Maintenance-Free Design — performs without failure in excess of 200,000 full stroke cycles in iron-oxide contaminated water.

• 1/2" 3-Way Characterized Control Valve
• Hot Water Chilled Water Up To 50% Glycol / -22°F to 212°F
• CV 1.2/0.7
• 85 to 264 VAC
• On/Off
• Spring Return - Normally Open
• 27 in-lb Torque
• 48 in. Appliance Cable
• Female NPT
• <75 sec Runtime
• Close-Off 200 psi
• Chrome-Plated Brass Ball & Nickel-Plated Brass Stem
• NEMA 2
