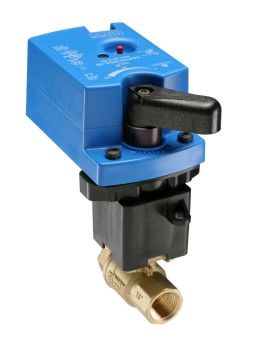

1" 2W BALL VALVE 18.7CV; SS TRM NSRVA9104-AGA-3S ACT WITHM9000-561 THERMAL BARRIER
Description
VG1000 Series Ball Valves are designed to regulate the flow of hot or chilled water and, for some models, low-pressure steam in response to the demand of a controller in HVAC systems. Available in sizes 1/2 through 2 in. (DN15 through DN50), this family oftwoand three-way forged brass valves is factory or field mounted to Johnson Controls® VA9104 and VA9300 Series Non-Spring-Return and VA9203 and VA9208 Series Spring-Return Electric Actuators for on/off, floating or proportional control. Refer to the VG1000 Series Forged Brass Ball Valves Product Bulletin (LIT-977132) for important product application and single point of contact information.
Features
- Forged brass body — provides 580 psig static pressure rating.
- 200 psi closeoff pressure rating — provides tight shutoff.
- 300 series stainless steel ball and stem assembly — tolerates high-temperature water or 15 psi saturated steam with fluid temperatures of -22°F to 284°F (-30°C to 140°C) or where a higher degree of corrosion protection is desired.
- 500:1 rangeability — provides accurate control under all load conditions.
- 1" 2-Way Ball Valve - No Characterizing Disc
- Hot Water Chilled Water Up To 50% Glycol 15# Steam / -22?F to 284?F
- CV 18.7
- 24 VAC
- Floating Point Without Timeout
- Non-Spring Return
- 35 in-lb Torque
- M3 Screw Terminals
- Female NPT
- 60 sec Runtime
- Close-Off 200 psi
- Stainless Steel Ball & Stem
- NEMA 1
Specifications
Item Number | VG1245CPH9T4AGA |
Brand | Johnson Controls |
Category | Valves & Valve Actuators |
Control Input | On/Off |
Control Valves Type | Ball Valve |
Section | Ball 2-Way w/ Electric Actuator |
Section | Valves & Actuators |
Spring Return | Non-Spring Return |
SubCategory | Ball 2-Way w/ Electric Actuator |
Valve Size | 1 - 2-Way |
Voltage | 24V |
