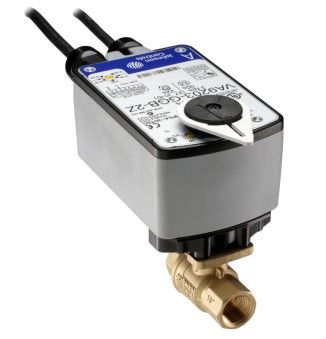

VG1241AG+923GGA | 1/2" 2W BALL VALVE 4.7CV; BRASS TRIM SPRING OPENPROP CTL; WITHOUT SWITCH | Johnson Controls

Johnson Controls | VG1241AG+923GGA
The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to VG1241AG+923GGA

Documents and manuals

Johnson Controls VG1241AG+923GGA Documents

Overview

Details for VG1241AG+923GGA

1/2" 2W BALL VALVE 4.7CV; BRASS TRIM SPRING OPENPROP CTL; WITHOUT SWITCH

VG1000 Series Ball Valves are designed to regulate the flow of hot or chilled water and, for some models, low-pressure steam in response to the demand of a controller in HVAC systems. Available in sizes 1/2 through 2 in. (DN15 through DN50), this family of twoand three-way forged brass valves is factory or field mounted to Johnson Controls® VA9104, M9106, M9109, and M9100 Series Non-Spring-Return and VA9203 and VA9208 Series Spring-Return Electric Actuators for on/off, floating, or proportional control.
  • 1/2" 2-Way Characterized Control Valve
  • Hot Water Chilled Water Up To 50% Glycol / -22?F to 212?F
  • CV 4.7
  • 24 VAC/VDC
  • Proportional [0(2) to 10 VDC]
  • Spring Return - Normally Open
  • 27 in-lb Torque
  • 120 in. Plenum Cable
  • Female NPT
  • 90 sec Runtime
  • Close-Off 200 psi
  • Chrome-Plated Brass Ball & Nickel-Plated Brass Stem
  • NEMA 2

Specifications

Item Number VG1241AG+923GGA
Brand Johnson Controls
Category Valves & Valve Actuators
Control Input Modulating
Control Valves Type Ball Valve
Section Ball 2-Way w/ Electric Actuator
Section Valves & Actuators
Spring Return Spring Return
SubCategory Ball 2-Way w/ Electric Actuator
Valve Size 0.5" - 2-Way
Voltage 24V
