VG1241AF+9T4IGA | 1/2" 2W BALL VALVE 2.9CV; BRASS TRIM NON-SPR RET VA9104-AGA-3S NO SWITCH FLOATING CONTROL | Johnson Controls
Documents and manuals
Johnson Controls VG1241AF+9T4IGA Documents
Overview
Details for VG1241AF+9T4IGA

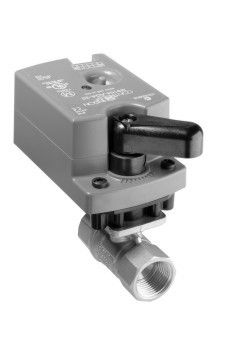

1/2" 2W BALL VALVE 2.9CV; BRASS TRIM NON-SPR RET VA9104-AGA-3S NO SWITCH FLOATING CONTROL
Description
VG1000 Series Ball Valves are designed to regulate the flow of hot or chilled water and, for some models, low-pressure steam in response to the demand of a controller in HVAC systems. Available in sizes 1/2 through 2 in. (DN15 through DN50), this family of twoand three-way forged brass valves is factory or field mounted to Johnson Controls® VA9104 and VA9300 Series Non-Spring Return and VA9203 and VA9208 Series Spring-Return Electric Actuators for on/off, floating, or proportional control.
Refer to the VG1000 Series Forged Brass Ball Valves Product Bulletin (LIT-977132) for important product application information.
Features
- Forged brass body — provides 580 psig static pressure rating.
- 200 psi closeoff pressure rating — provides tight shutoff.
- Graphite-reinforced Polytetrafluoroethylene (PTFE) seats — include 15% graphite-reinforced ball seals, providing better wear resistance.
- Chrome-plated brass ball and stem assembly standard — handles both chilled and hot water applications with a fluid temperature range of 23°F to 203°F (-5°C to 95°C).
- 500:1 rangeability — provides accurate control under all load conditions.
Repair information
If the VG1000 Series Ball Valve fails to operate within its specifications, replace the valve body, actuator, or entire assembly. For replacement parts, contact the earest Johnson Controls representative.
- 1/2" 2-Way Characterized Control Valve
- Hot Water Chilled Water Up To 50% Glycol / -22?F to 212?F
- CV 2.9
- 24 VAC
- On/Off & Floating Point With Timeout
- Non-Spring Return
- 35 in-lb Torque
- M3 Screw Terminals
- Female NPT
- 60 sec Runtime
- Close-Off 200 psi
- Chrome-Plated Brass Ball & Nickel-Plated Brass Stem
- NEMA 1
Specifications
Item Number | VG1241AF+9T4IGA |
Brand | Johnson Controls |
Category | Valves & Valve Actuators |
Control Input | Floating |
Control Valves Type | Ball Valve |
Section | Ball 2-Way w/ Electric Actuator |
Section | Valves & Actuators |
Spring Return | Non-Spring Return |
SubCategory | Ball 2-Way w/ Electric Actuator |
Valve Size | 0.5" - 2-Way |
Voltage | 24V |
