VG1241AF+943BUA | 1/2" 2W BALL VALVE 2.9CV; BRASS TRIM SPRING CLOSEDON/OFF; WITHOUT SWITCH | Johnson Controls
Documents and manuals
Johnson Controls VG1241AF+943BUA Documents
Overview
Details for VG1241AF+943BUA

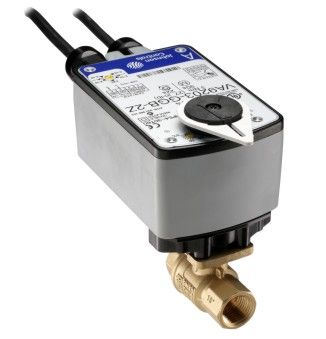

1/2" 2W BALL VALVE 2.9CV; BRASS TRIM SPRING CLOSEDON/OFF; WITHOUT SWITCH
Description
VG1000 Series Ball Valves are designed to regulate the flow of hot or chilled water and, for some models, low-pressure steam in response to the demand of a controller in HVAC systems. Available in sizes 1/2 through 2 in. (DN15 through DN50), this family of twoand three-way forged brass valves is factory or field mounted to Johnson Controls® VA9104, M9106, M9109, and M9100 Series Non-Spring-Return and VA9203 and VA9208 Series Spring-Return Electric Actuators for on/off, floating, or proportional control.
Features
- Forged Brass Body — provides 580 psig static pressure rating.
- Chrome-Plated Brass Ball and Stem Assembly Standard — handles both chilled water and hot water applications with a fluid temperature range of 23°F to 203°F (-5°C to 95°C).
- Graphite-Reinforced Polytetrafluoroethylene (PTFE) Seats — include 15% graphite-reinforced ball seals, providing better wear resistance.
- 500:1 Rangeability — provides accurate control under all load conditions.
- Maintenance-Free Design — performs without failure in excess of 200,000 full stroke cycles in iron-oxide contaminated water.
- 1/2" 2-Way Characterized Control Valve
- Hot Water Chilled Water Up To 50% Glycol / -22?F to 212?F
- CV 2.9
- 85 to 264 VAC
- On/Off
- Spring Return - Normally Closed
- 27 in-lb Torque
- 48 in. Appliance Cable
- Female NPT
- <75 sec Runtime
- Close-Off 200 psi
- Chrome-Plated Brass Ball & Nickel-Plated Brass Stem
- NEMA 2
Specifications
Item Number | VG1241AF+943BUA |
Brand | Johnson Controls |
Category | Valves & Valve Actuators |
Control Input | On/Off |
Control Valves Type | Ball Valve |
Section | Ball 2-Way w/ Electric Actuator |
Section | Valves & Actuators |
Spring Return | Spring Return |
SubCategory | Ball 2-Way w/ Electric Actuator |
Valve Size | 0.5" - 2-Way |
Voltage | 120V |
