VFN050LB+935HGC | BTRFLY 2-WAY 5" CV=1376; 2-WAY 5" FLANGE ANSI125/150 CV=1376; LAST POS; 24VAC+/-20%; 24VDC+/-10% | Johnson Controls

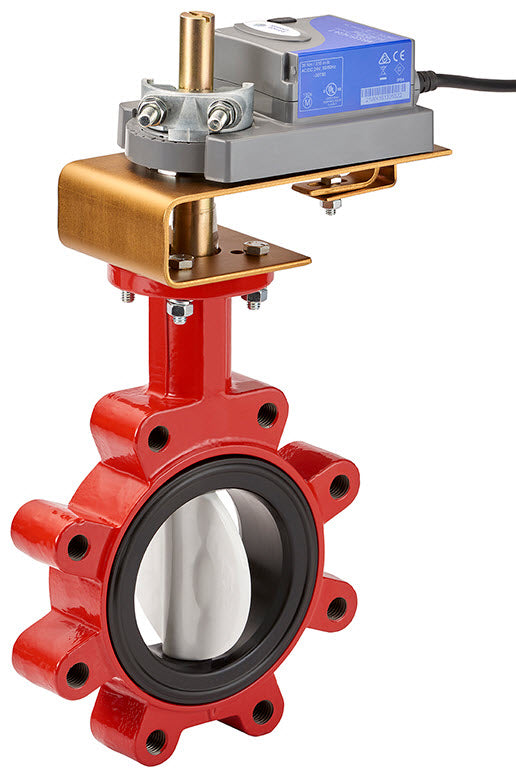

The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to VFN050LB+935HGC
Documents and manuals
Johnson Controls VFN050LB+935HGC Documents
Overview
Details for VFN050LB+935HGC
BTRFLY 2-WAY 5" CV=1376; 2-WAY 5" FLANGE ANSI125/150 CV=1376; LAST POS; 24VAC+/-20%; 24VDC+/-10%
- 5" 2-Way Butterfly Valve
- Ductile Iron Nylon 11 Coated Disc
- Chilled Water Hot Water Up to 50% Glycol / -40..250?F
- CV90=1376 CV60=428
- 24 VAC/VDC
- Programmable
- Non-Spring Return - Normally Open - 0
- 310 in-lb Torque
- 4 ft. Halogen-Free Cable
- 2 x SPDT
- ANSI 125/150 Flange
- 150 sec Runtime
- Cast Iron Body
- Close-Off 50 psi
- NEMA 5
Specifications
| Item Number | VFN050LB+935HGC |
| Brand | Johnson Controls |
| Category | Valves & Valve Actuators |
| Section | Butterfly 2 Way w/ Electric Actuator |
| Section | Valves & Actuators |
| SubCategory | Butterfly 2 Way w/ Electric Actuator |
